Screen

Designer:
IAMC Team

Ikona symbolizująca zjawisko pochłaniania fali dźwiękowej

absorption

Ikona symbolizująca średnie tony fal dźwiękowych

mid-tones

Ikona symbolizująca wysokie tony fal dźwiękowych

high tones

Acoustic partition

Screen is an acoustic panel with excellent sound-absorbing properties. Light, modular, with a small thickness and various mounting methods, it can be used in almost any interior as a free-standing or hanging element. Thanks to the Screen panels, you can decide for yourself what the interior of your room will look like.

more details

Quality and certificates of EcoPET material

Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.

RoHS compliant
Reach compliant

EU 1907/2006

Certyfikat wolny od formaldehydu

EN 717-1:2004

formaldehyde free

Certyfikat klasy niepalności

B-s2, d0

fire resistance

Properties

Details

Screen is a sound-absorbing acoustic partition made in a free-standing or hanging form. It is not only a barrier to sound, but also eliminates occurring acoustic defects in rooms, i.e. too long reverberation or flutter echo. By using EcoPET the Screen, you can separate a part of a larger room, creating a work space with much greater acoustic comfort.

Size

According to an individual design.
Size max. - 1220 × 2440 mm

Thickness

9 – 27 mm

Area weight

2000 - 5000 g/sqm

Material

EcoPET, EcoFELT - pressed PET polyester fibers
Colour guide available on request.

Designer

IAMC Team

Sound absorption coefficient

αw = 0.25

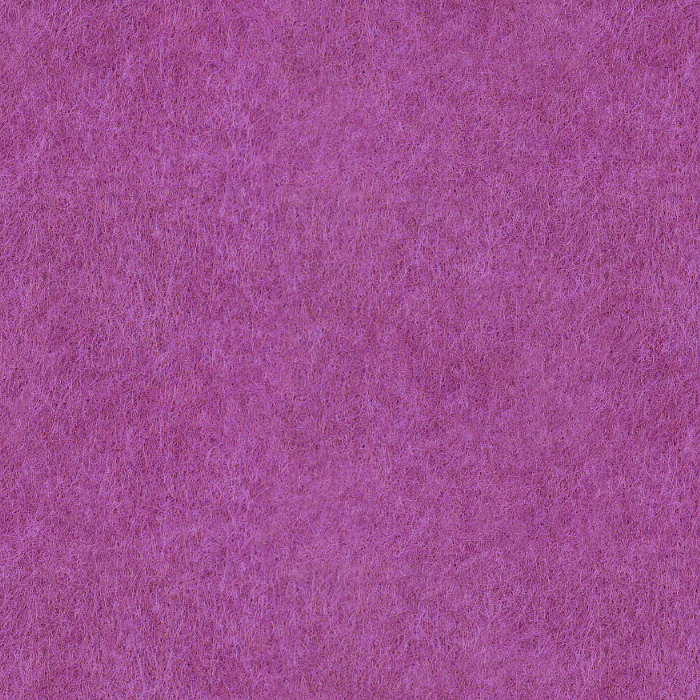

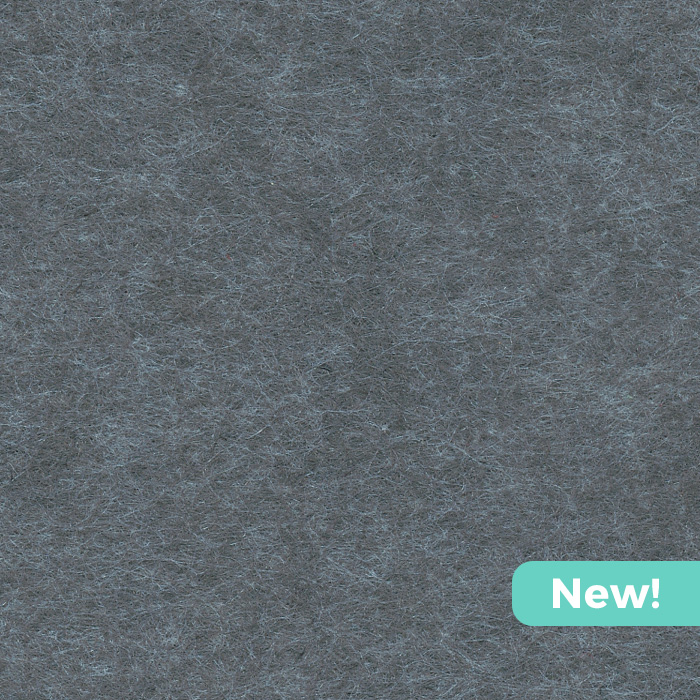

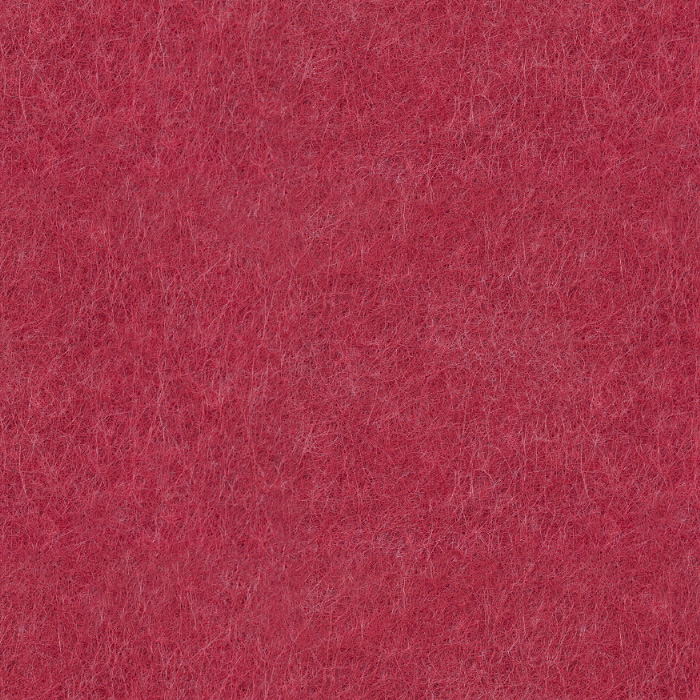

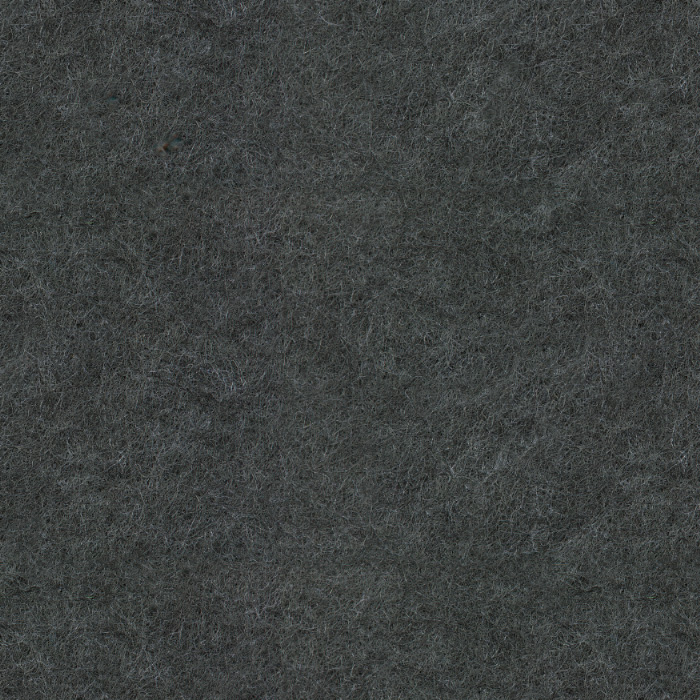

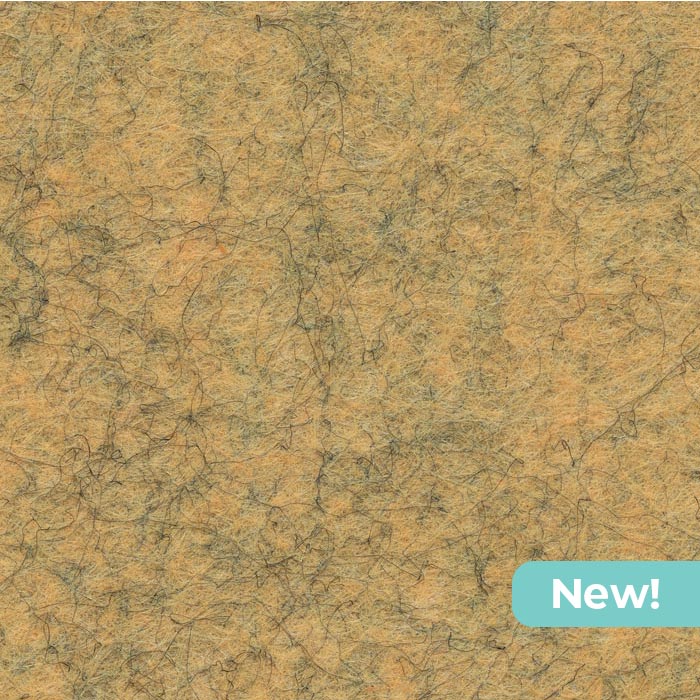

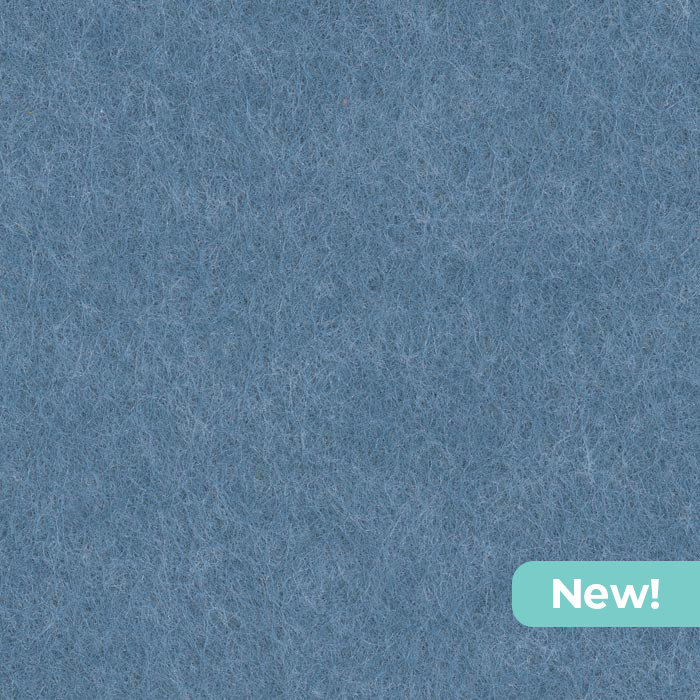

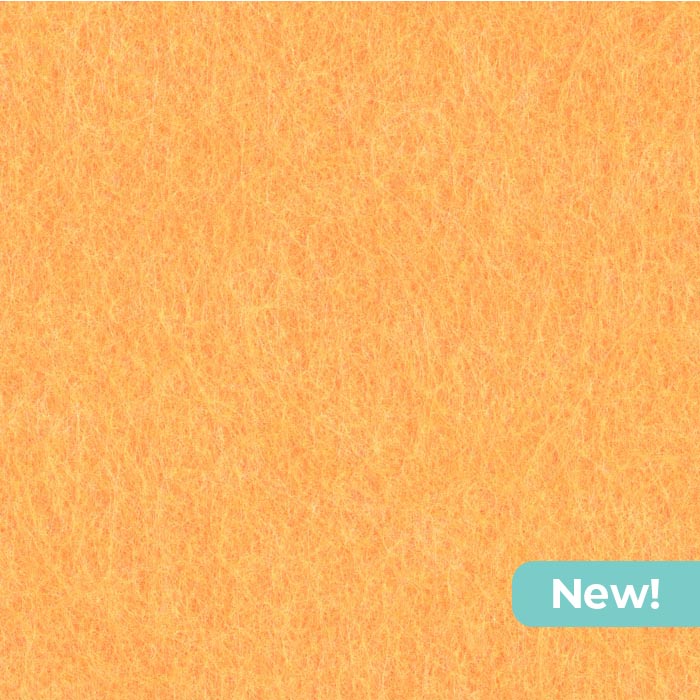

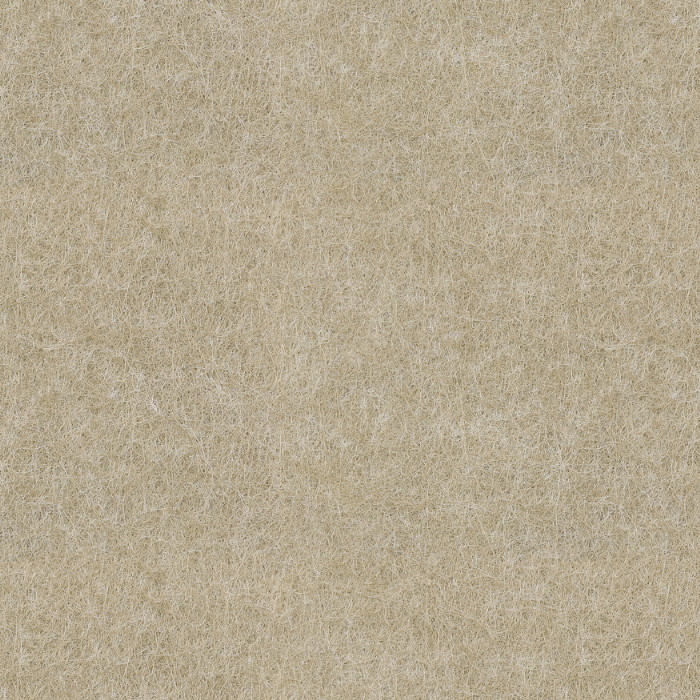

Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.

Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.

Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.

Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.

  • standard and open-plan offices
  • hairdressing and beauty salons
  • customer service stations in banks and others

Fire safety

Possibility of making out of materials with fire resistance class B-s2, d0.

Sound absorption coefficients ofArchitected Sound Screen

Sound absorption coefficient graph of acoustic partition Architected Sound EcoPET the Screen.svg
frequency 1/1 oct.
125 Hz 0.05
250 Hz 0.05
500 Hz 0.15
1000 Hz 0.30
2000 Hz 0.40
4000 Hz 0.50
  • Screen *
  • * values obtained by numerical simulation for an element freely suspended in space
