Sound absorbing panel

Up-Sorber Panel is a timeless rectangular panel designed to absorb noise and create comfortable, quiet environment. Classical sound absorption tool which can be ordered in many dimensions and colours. Despite its simple shape possibilities are almost unlimited here, making this product the most versatile in our offer.

Refined element of an interior design.

more details
Wizualizacja adaptacji akustycznej recepcji z zastosowaniem paneli akustycznych Up-Sorber Panel
Wizualizacja adaptacji akustycznej pokoju odsłuchowego z zastosowaniem paneli pochłaniających Up-Sorber Panel
Wizualizacja adaptacji akustycznej poczekalni z zastosowaniem paneli akustycznych Up-Sorber Panel
Wizualizacja adaptacji akustycznej recepcji z zastosowaniem paneli akustycznych Up-Sorber Panel
Wizualizacja adaptacji akustycznej salonu z zastosowaniem paneli akustycznych Up-Sorber Panel
Wizualizacja adaptacji akustycznej poczekalni w gabinecie dentystycznym z zastosowaniem paneli akustycznych Up-Sorber Panel

Designer
AS Team

more
Architected Sound Team

Details

Up-Sorber Panel is made of a layer of properly chosen biologically neutral sound absorbing material put into solid wooden grid and finished with highest class fabric. Huge selection of colours and textile patterns in various sizes, accompanied with invisible wooden grid, as well as quick and uncomplicated mounting and disassembling in case of the on-wall and ceiling version.

Size

632 × 1032 × 110 mm (standard) or matched to individual project.
Max width: 1200 mm

Weight

13.4 kg/m2 (at 60 mm depth)

Material

textile fabrics, mineral wool-based materials / PET / polyethylene foam, wood
Available in broad variety of plain and patterned finishing textiles.

Designer

Architected Sound Team

Sound absorption coefficient

αw, max = 1.00

Textiles of sound absorbing panels Up‑Sorber Panel are available according to the pattern book, in a wide range of colors, plain and patterned finishing materials.

Pattern book is available on request.

  • lecture rooms
  • conference rooms
  • classrooms
  • recording studios
  • emission and sound engineering rooms
  • individual and group rehearsal rooms
  • waiting rooms
  • public and consumer spaces
  • open-space
  • domestic interiors

The ability to precisely design the sound absorption characteristics (even in the low frequency range) by choosing the right materials for coverage and filling.

Possibility to make inlets for lamps, etc.

Technical drawing

Architected Sound Up-Sorber Panel - Sound absorbing panel - Technical drawing with dimensions

Fire safety

Made of materials with flammability class at least B-s1 d0.

Sound absorption coefficients of Architected Sound Up-Sorber Panel

Architected Sound Up-Sorber Panel sound absorbing panel - sound absorption coefficients graph

Practical sound absorption coefficient αp

frequency 1/1-oct.
125 Hz0.750.25
250 Hz1.000.70
500 Hz1.000.95
1000 Hz0.951.00
2000 Hz0.950.95
4000 Hz0.950.95
  • at 50 mm depth of element *
  • at 80 mm depth of element *
  • * results obtained from analytical calculations

Architected Sound Up-Sorber Wall sound absorbing panel - Thumbnail cover of brochure

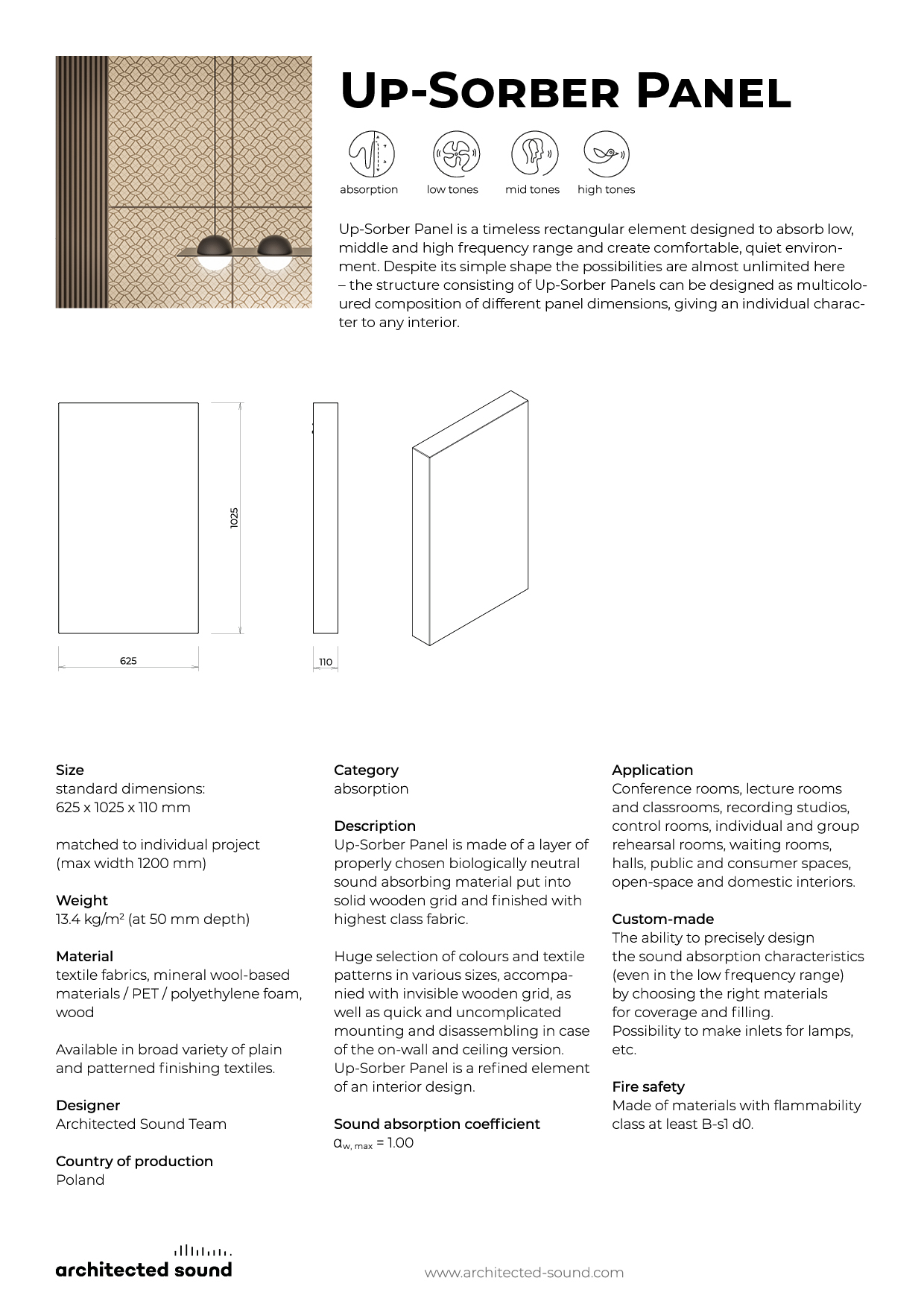

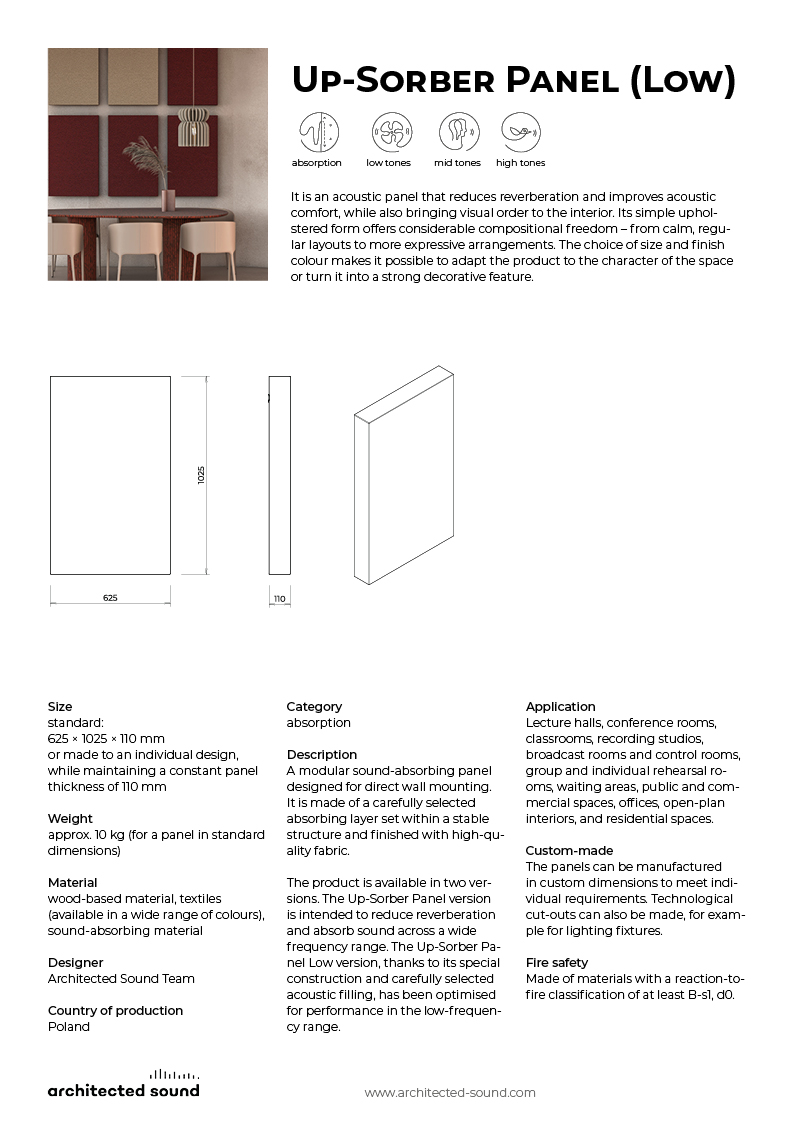

Architected Sound Up-Sorber Wall sound absorbing panel - Thumbnail cover of product sheet
