Sound-absorbing roller blinds

Up-Sorber Roll is expandable sound‑absorbing banner that we designed to ensure quick and automatic regulation of acoustic properties in multi-functional rooms. This product consists of rolled-up fabric of custom designed length to fit particular environment. Up‑Sorber Roll has a control system that provide autonomous and automatic operation.

Due to individually designed control system, setting proper acoustics has never been easier !

more details

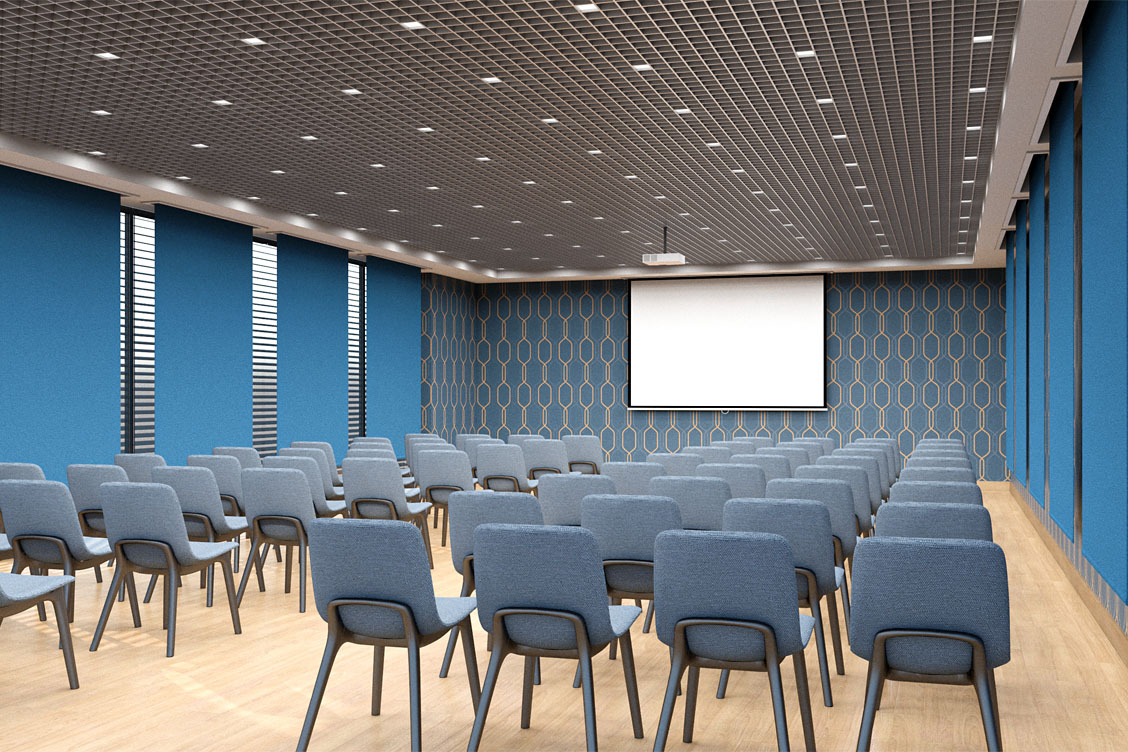

Wizualizacja sali koncertowej, w której zastosowano automatyczny system rozwijanych banerów akustycznych Up-sorber Roll w celu polepszenia akustyki pomieszczenia

Designer
AS Team

more
Architected Sound Team

Details

Up-Sorber Roll contains an expandable surface made of textile materials, ensuring the regulation of reverberation time in the range of medium and high tones by increasing the acoustic absorption of the interior and eliminating the first reflections of the sound.

Up-Sorber Roll can be made of one or two layers of textile. The latter increases acoustic absorption in low frequencies and allows obtaining maximum uniformity of acoustic conditions in the whole room.

The system is designed to be installed on walls or ceilings. Specialized mounting procedure required due to individual character of each project.

Size

  • standard width - 1.4 m
  • max width - 1.8 m (only in black)
  • max lenght - 5.0 m

Weight

ca. 26 kg

Material

absorptive fabrics
Available in various sizes and colours according to individual project.

Designer

Architected Sound Team

Sound absorption coefficient

αw, max = 0.55

Up-Sorber Roll sound absorbing banners are available in various sizes and colours according to the needs of an individual project. Colour selection from the RAL palette.

RAL K7 Classic

  • multi-functionals rooms
  • concert halls
  • theaters
  • philharmonics
  • lecture rooms
  • conference rooms
  • home listening rooms
  • rooms in buildings under the supervision of the conservator

Non-standard length and width possible. Possibility of creating a passive surface that can be made of materials ensuring free air flow, such as steel cables or mesh. The active surface is made of textile materials, also with non‑flammability certificates.
Possibility of backlighting of the lower stiffening beam with battery power supply.

Technical drawing

Wall mounting

Wall mounting of Architected Sound Up-Sorber Roll sound absorbing roller blinds

Ceiling mounting

Wall mounting of Architected Sound Up-Sorber Roll sound absorbing roller blinds
Textile dimensions of Architected Sound Up-Sorber Roll sound absorbing roller blinds

Fire safety

Made of materials with flammability class B-s1 d0.

Sound absorption coefficients of Architected Sound Up-Sorber Roll

Architected Sound Up-Sorber Roll - Expandable sound-absorbing banner -  Sound absorption coefficients graph

Practical sound absorption coefficient αp

frequency 1/1-okt.
125 Hz 0,05
250 Hz 0,25
500 Hz 0,55
1000 Hz 0,80
2000 Hz 0,70
4000 Hz 0,85
  • distance of the expanded surface from the wall: 100 mm
