Grid

Designer:
IAMC Team

absorption

mid-tones

high tones

Raster acoustic ceiling

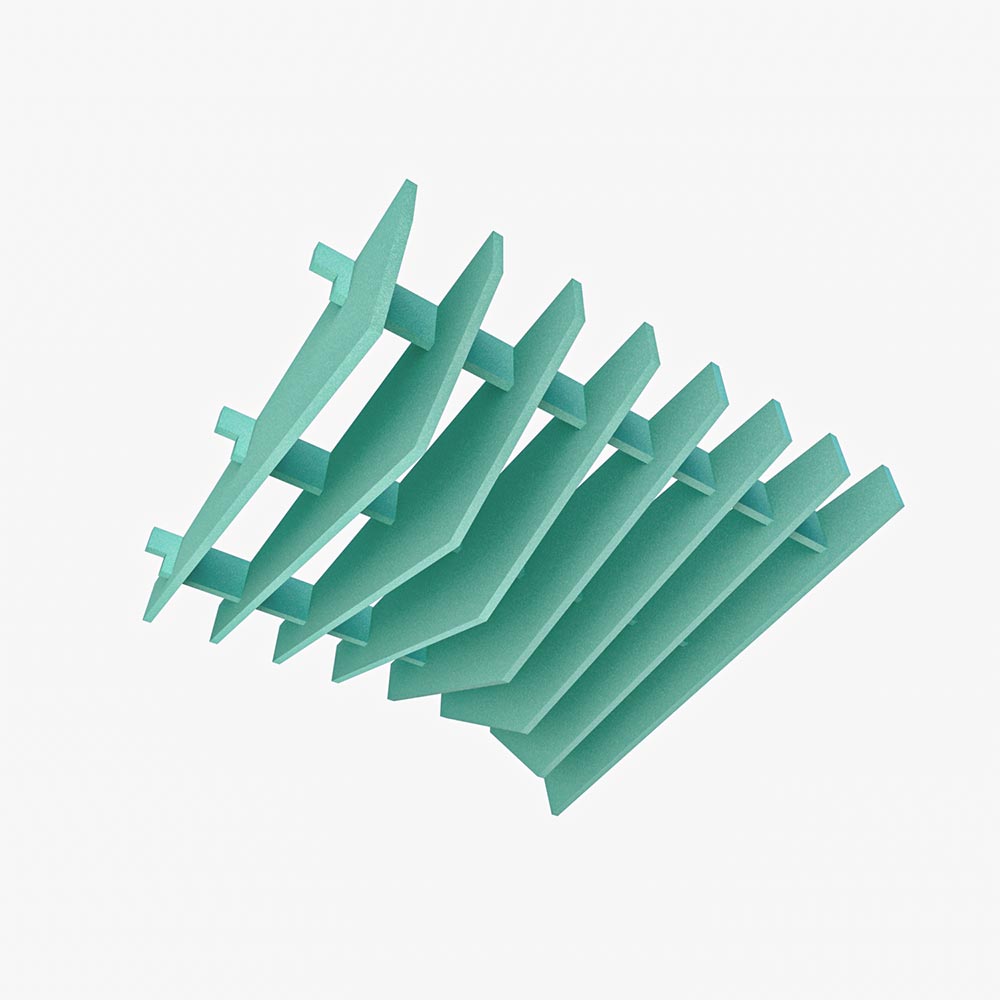

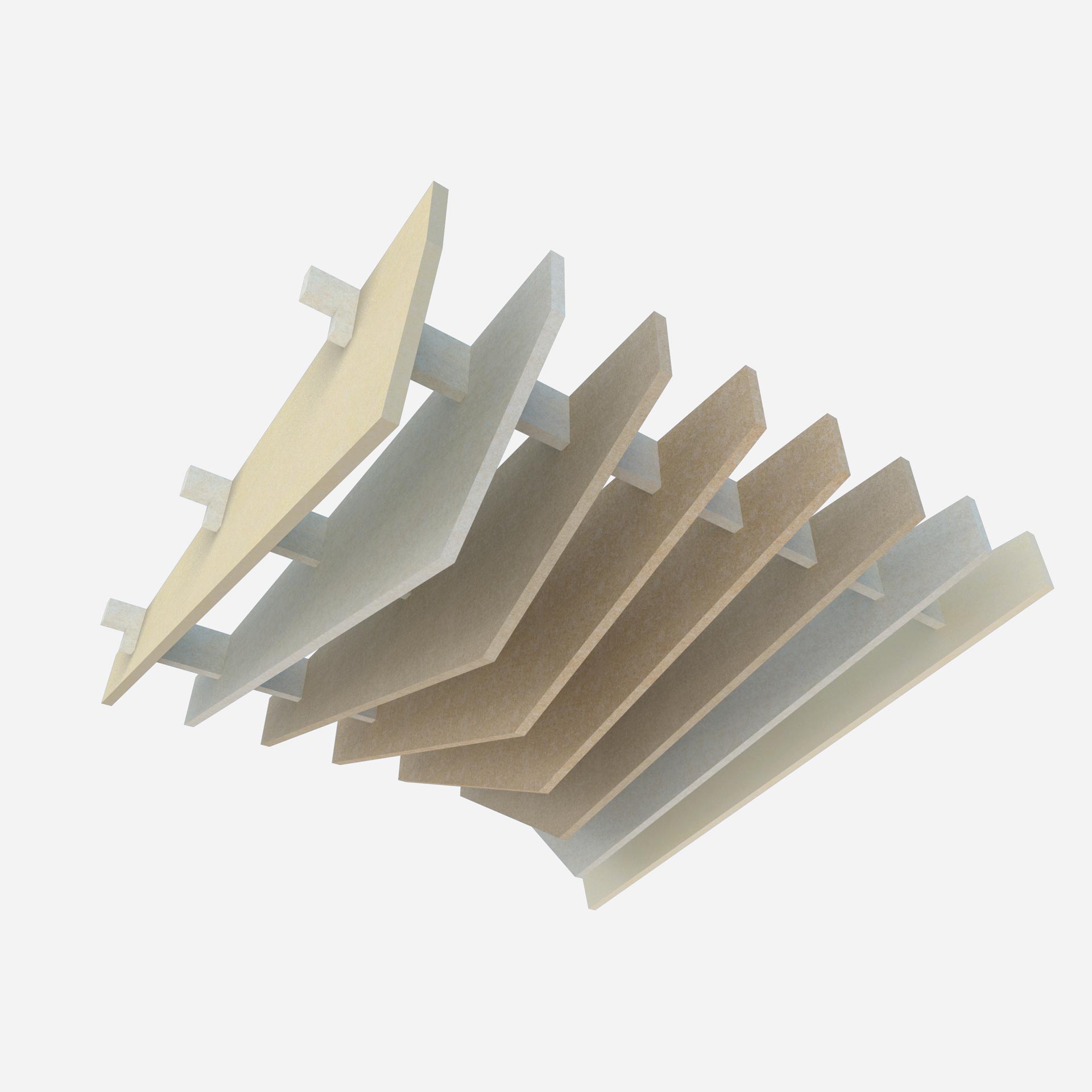

Grid was created to revitalize flat acoustic modular and raster suspended ceilings, also using the standard T24 and T15 construction. The spatial structure of the Grid elements, made of a material with a high sound absorption, translates into a much higher acoustic absorption capacity per square meter of the ceiling compared to commonly used solutions.

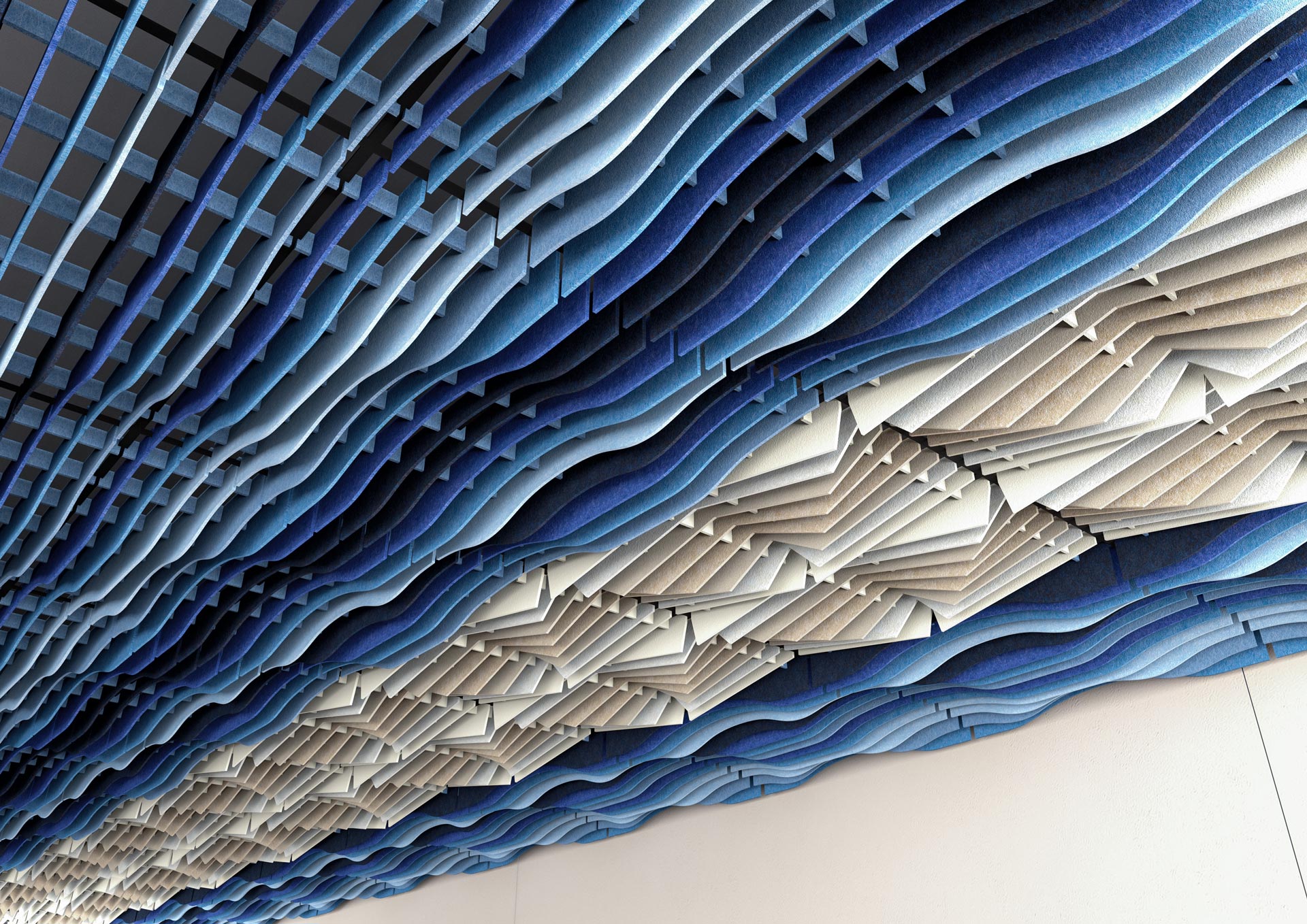

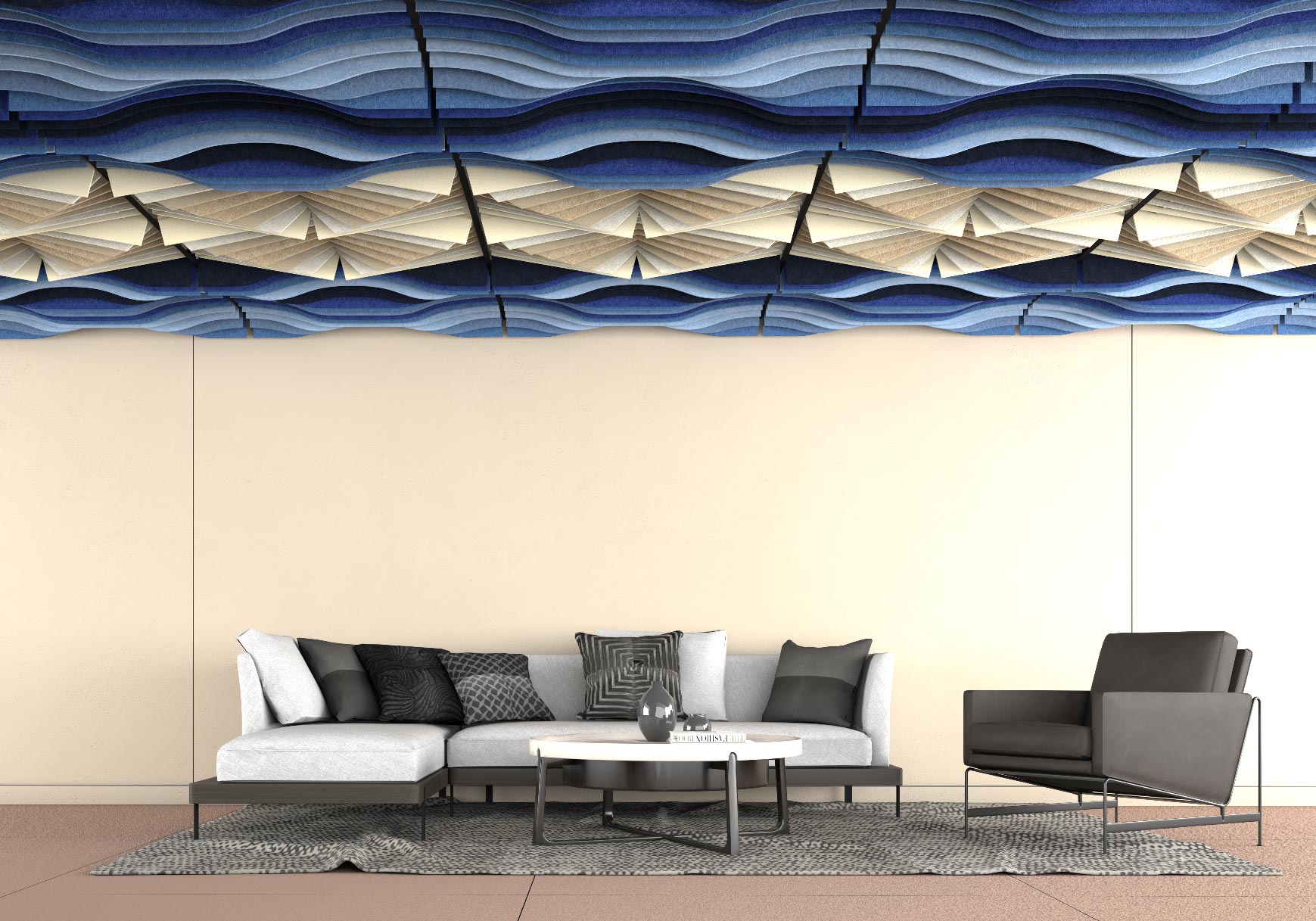

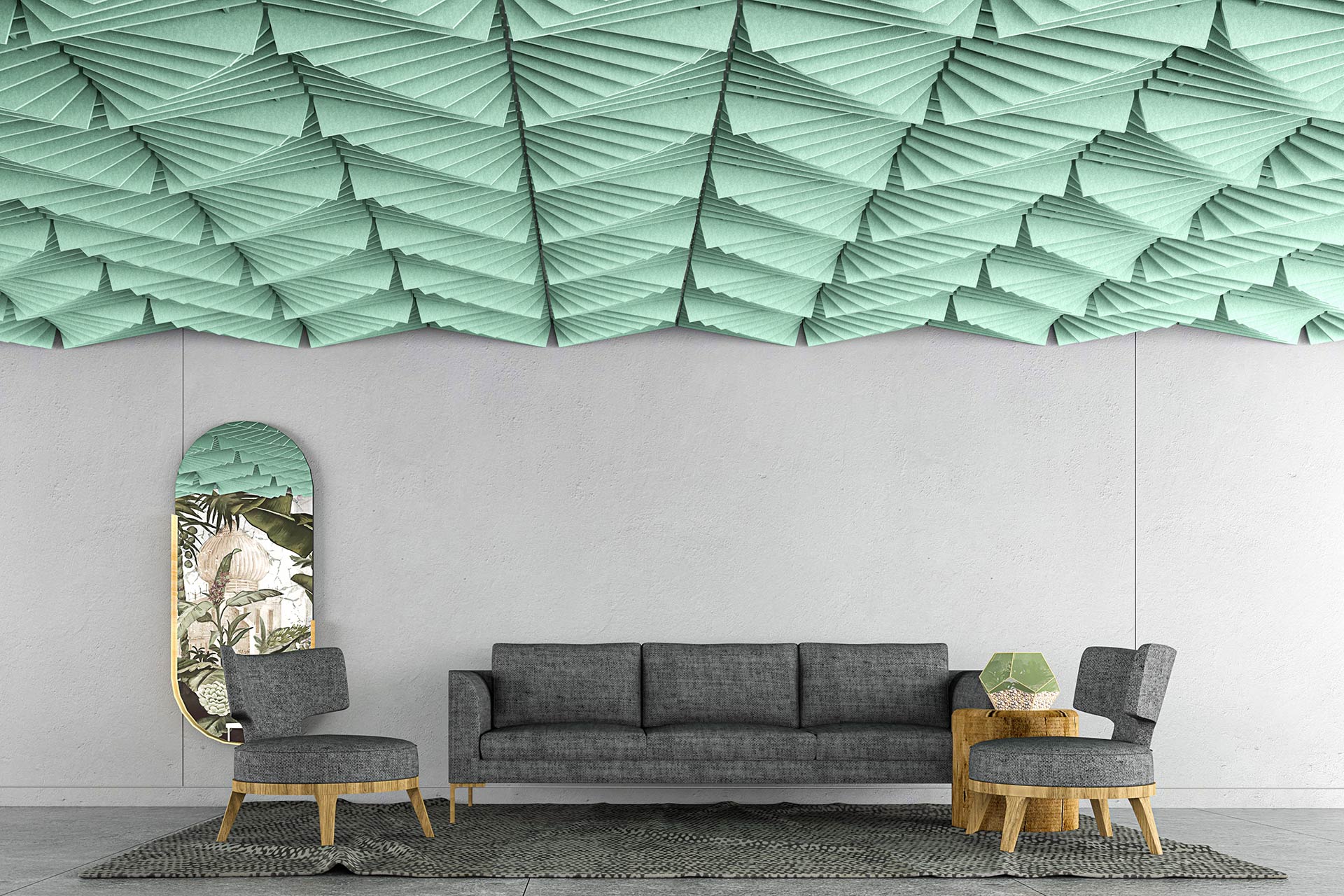

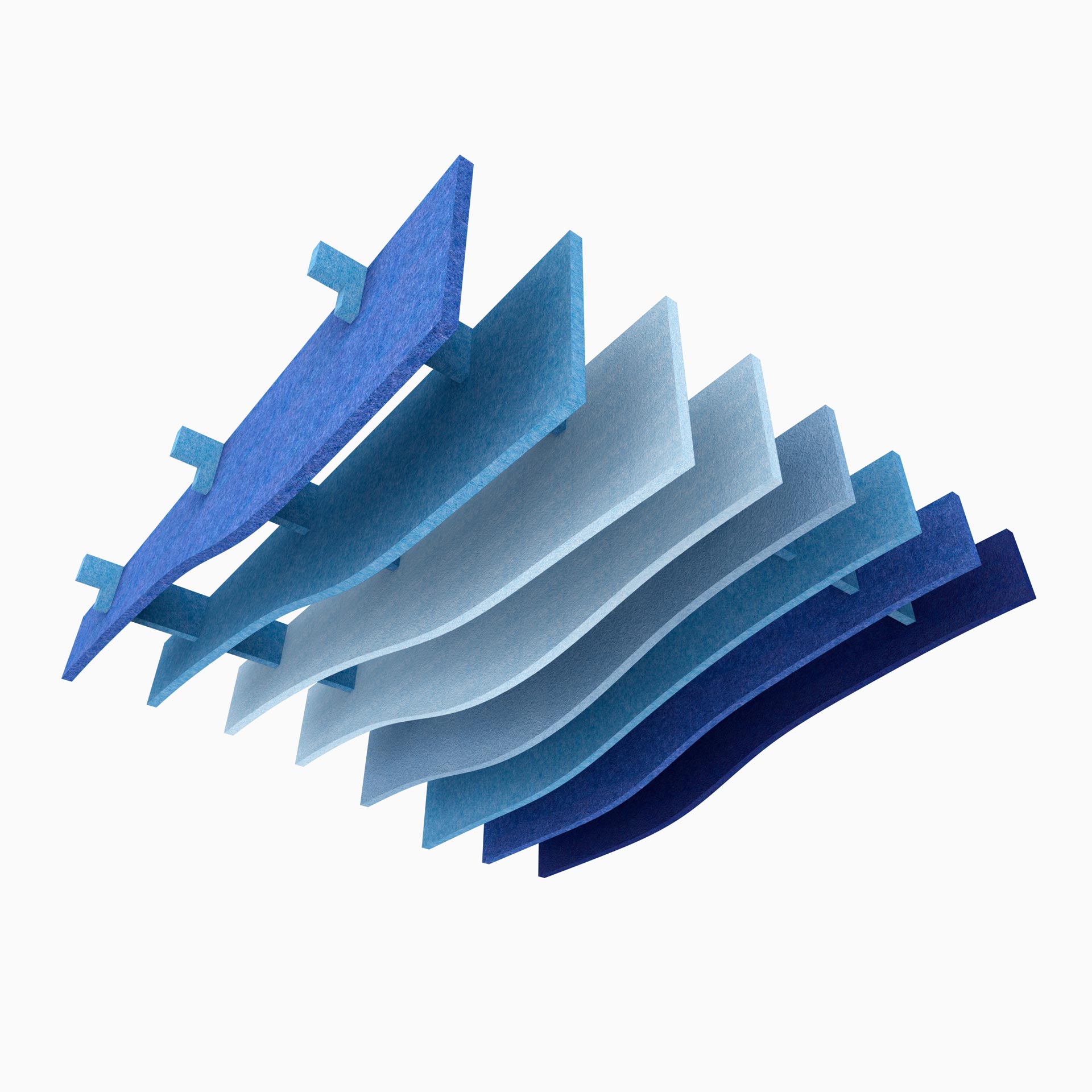

The system enables the creation of three-dimensional, multi-coloured and multi-layer spatial structures while ensuring excellent sound absorption properties.

The Grid modules can also be freely suspended on adjustable slings, without the use of T24 or T15 grids.

more details

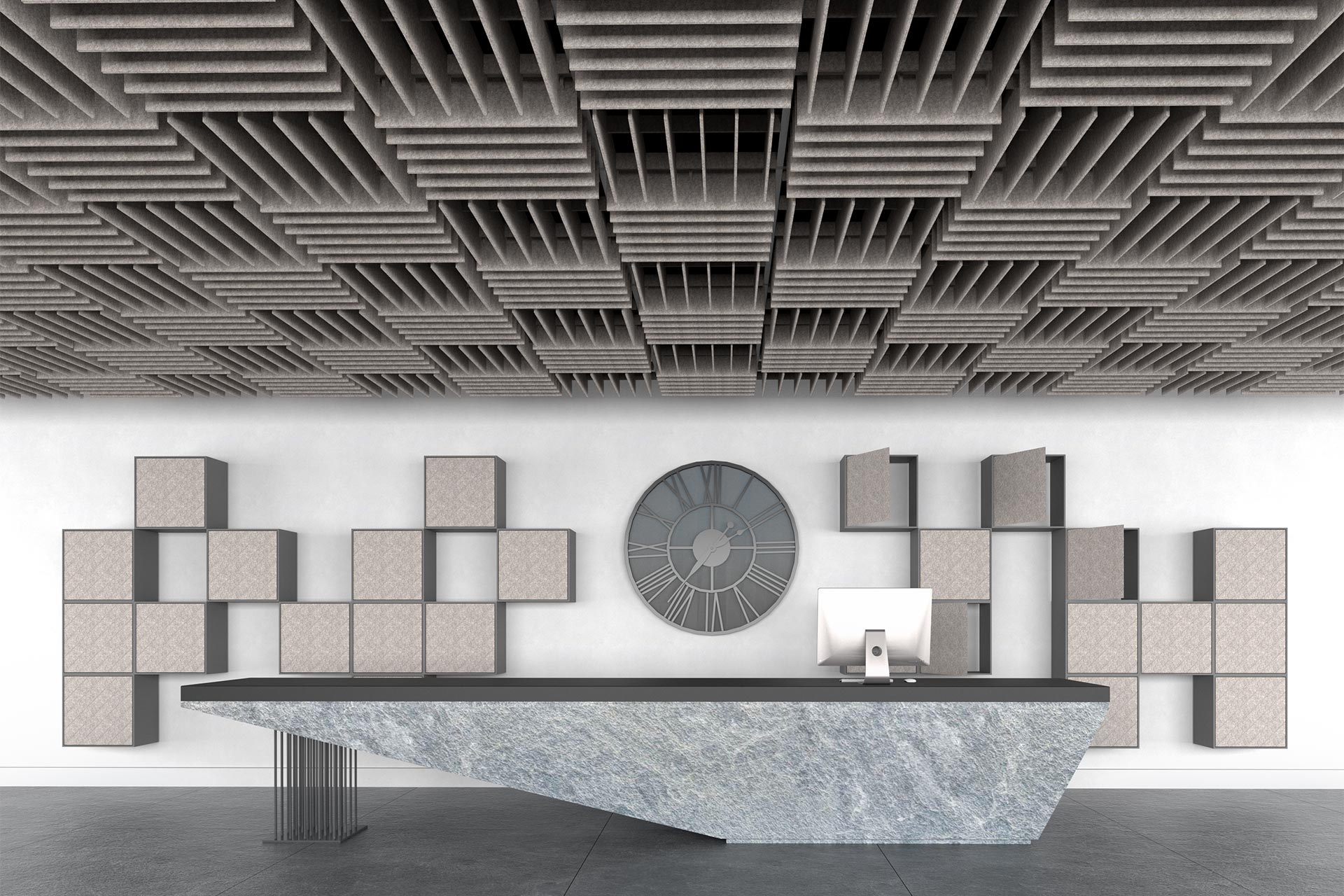

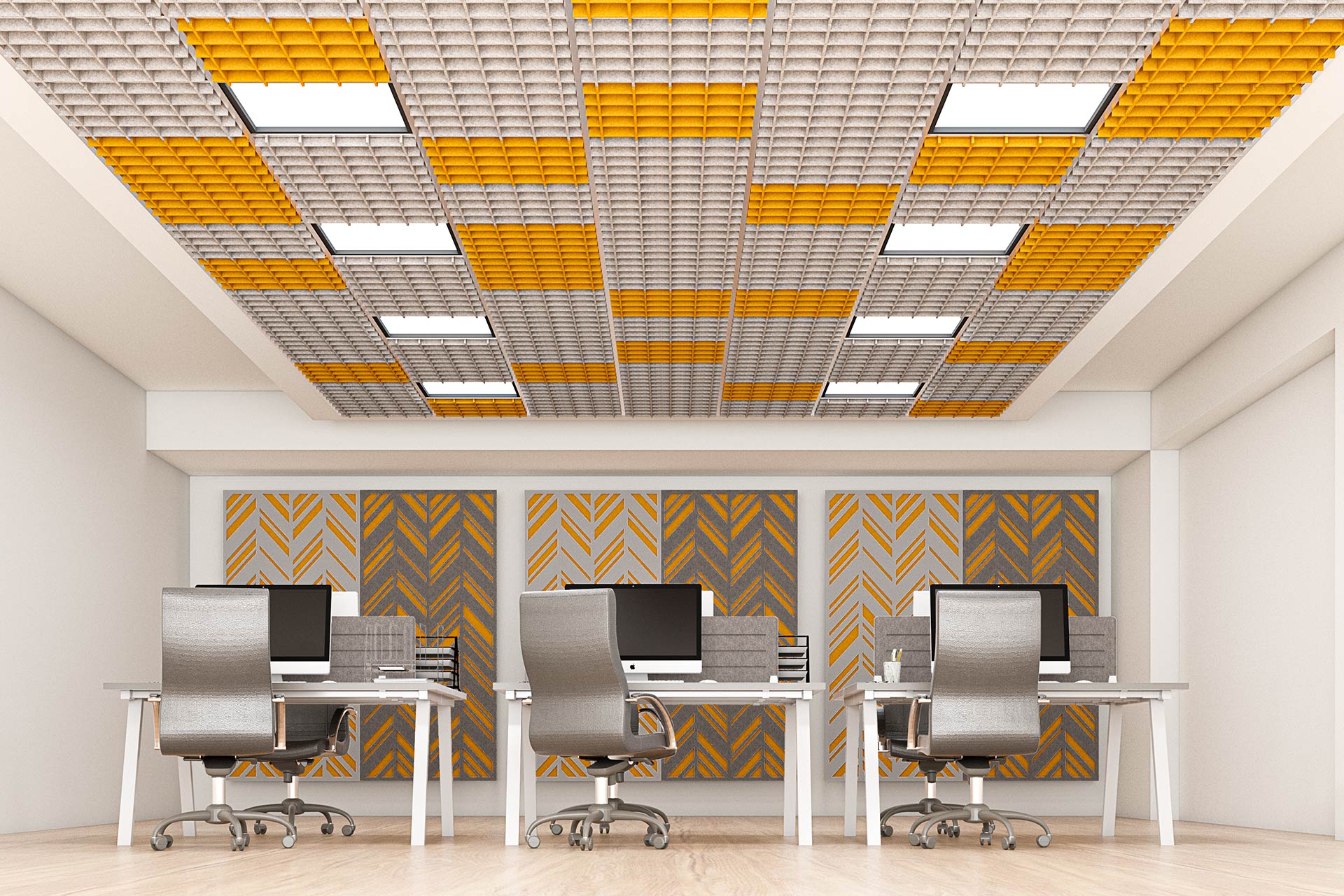

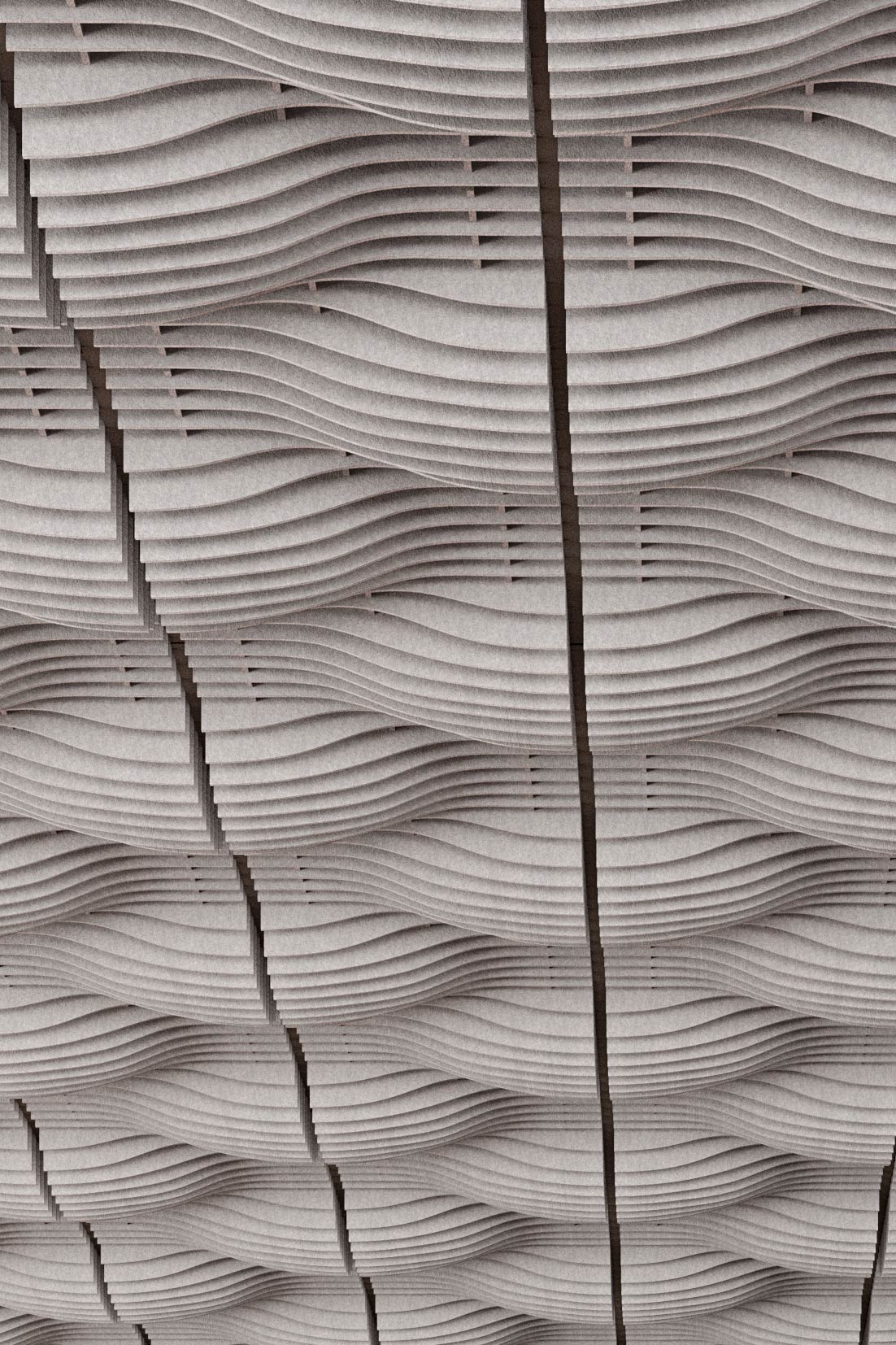

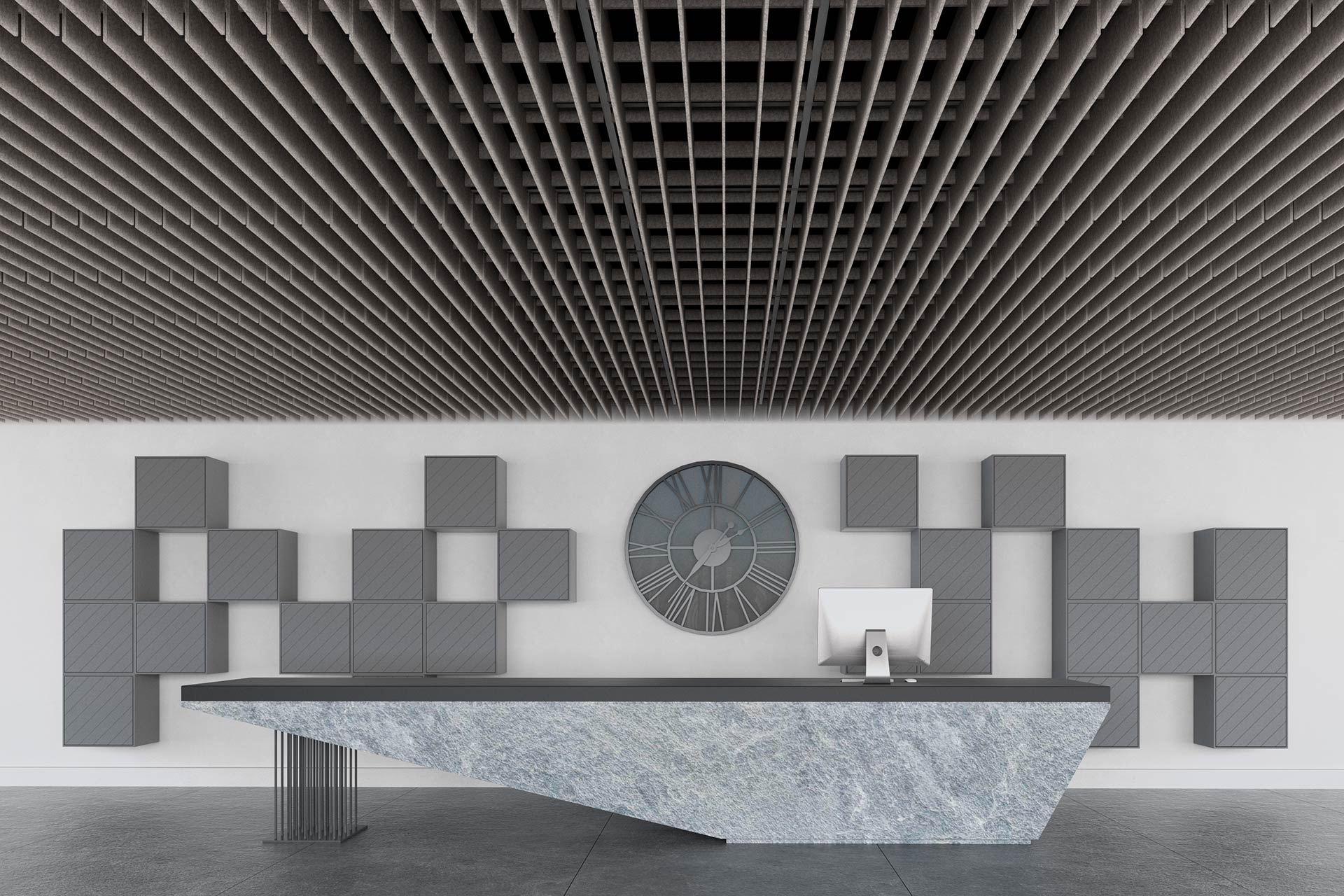

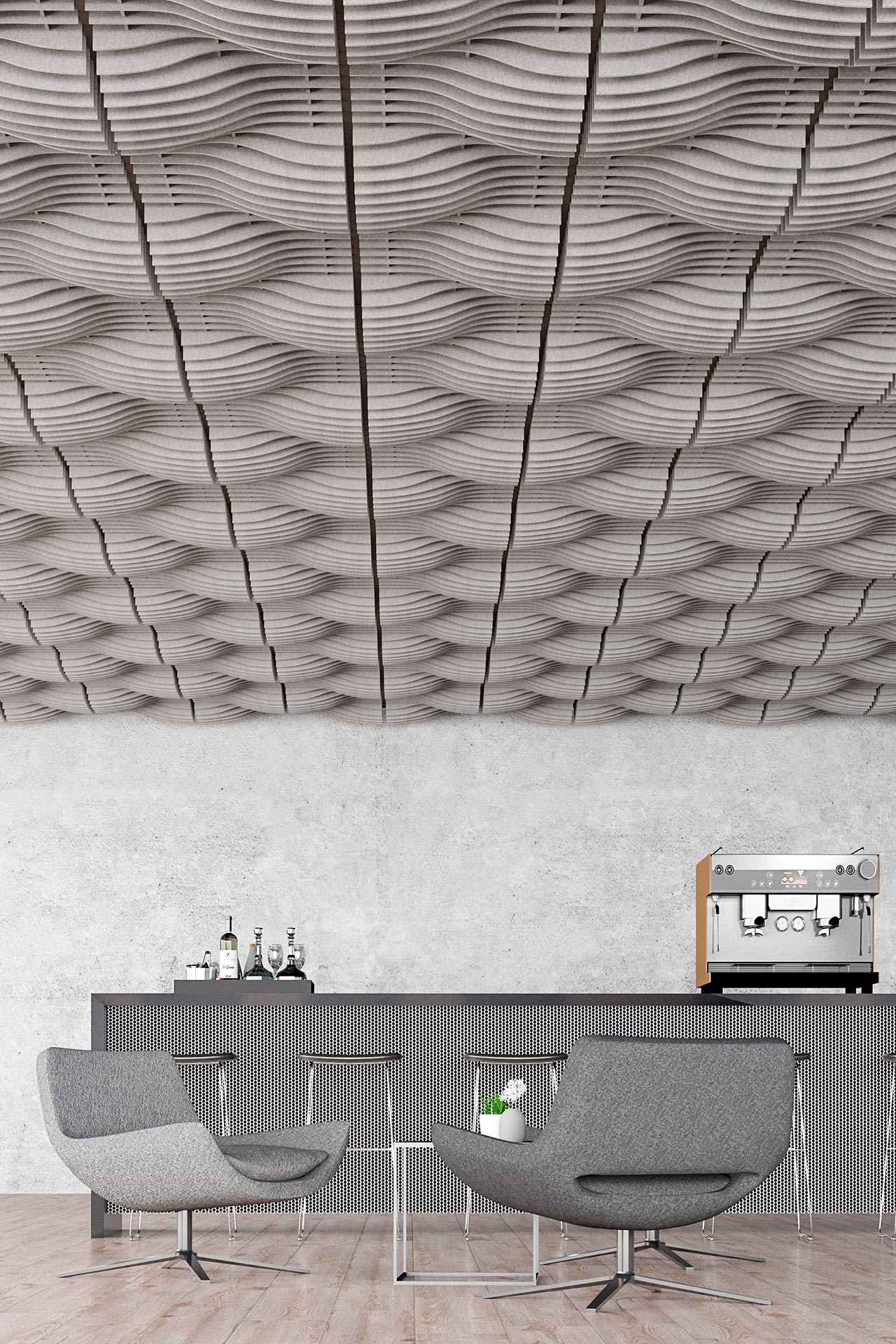

Mounted on a ceiling structure, it provides an aesthetic finish and effective sound absorption,
perfectly complementing T24 and T15 systems.

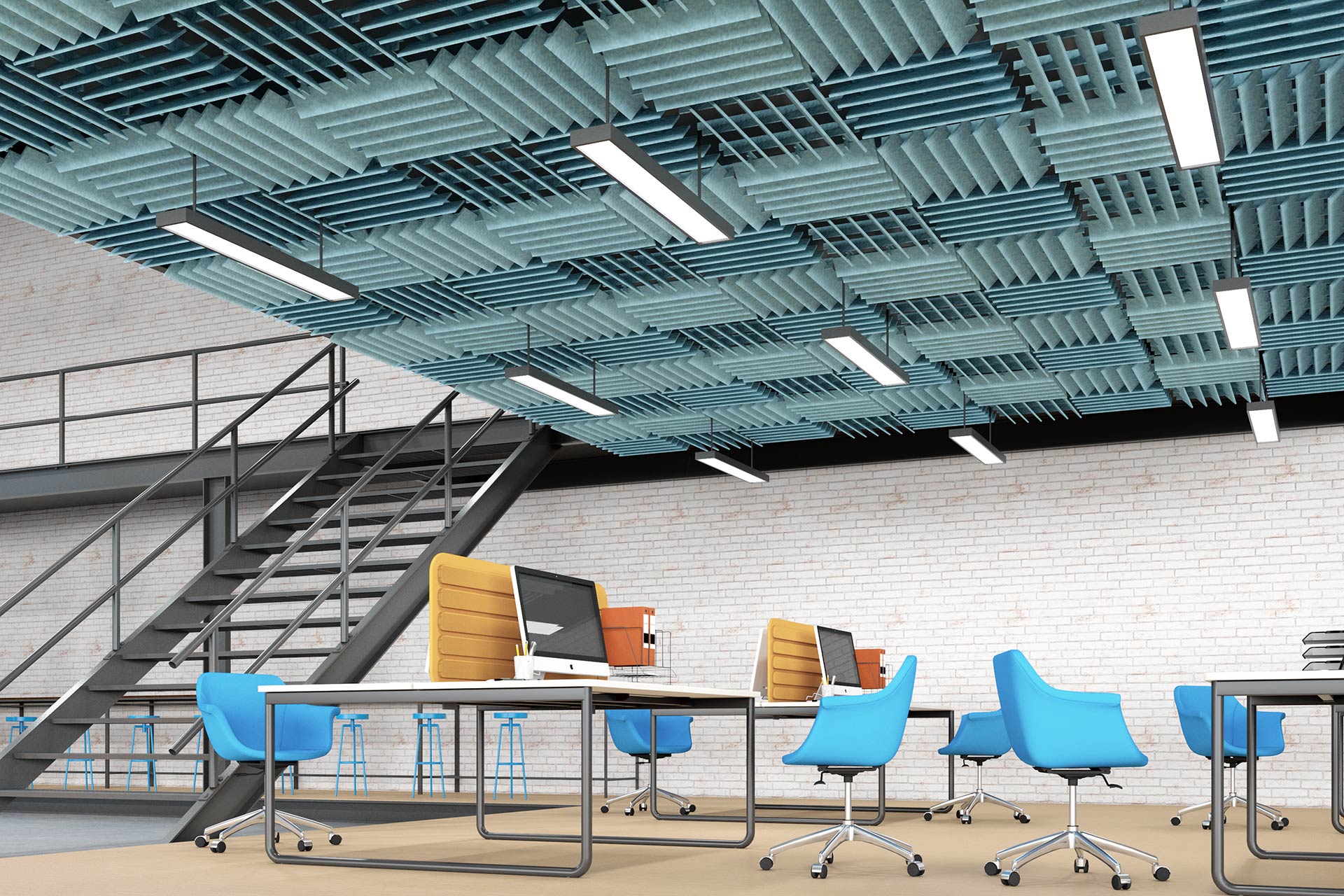

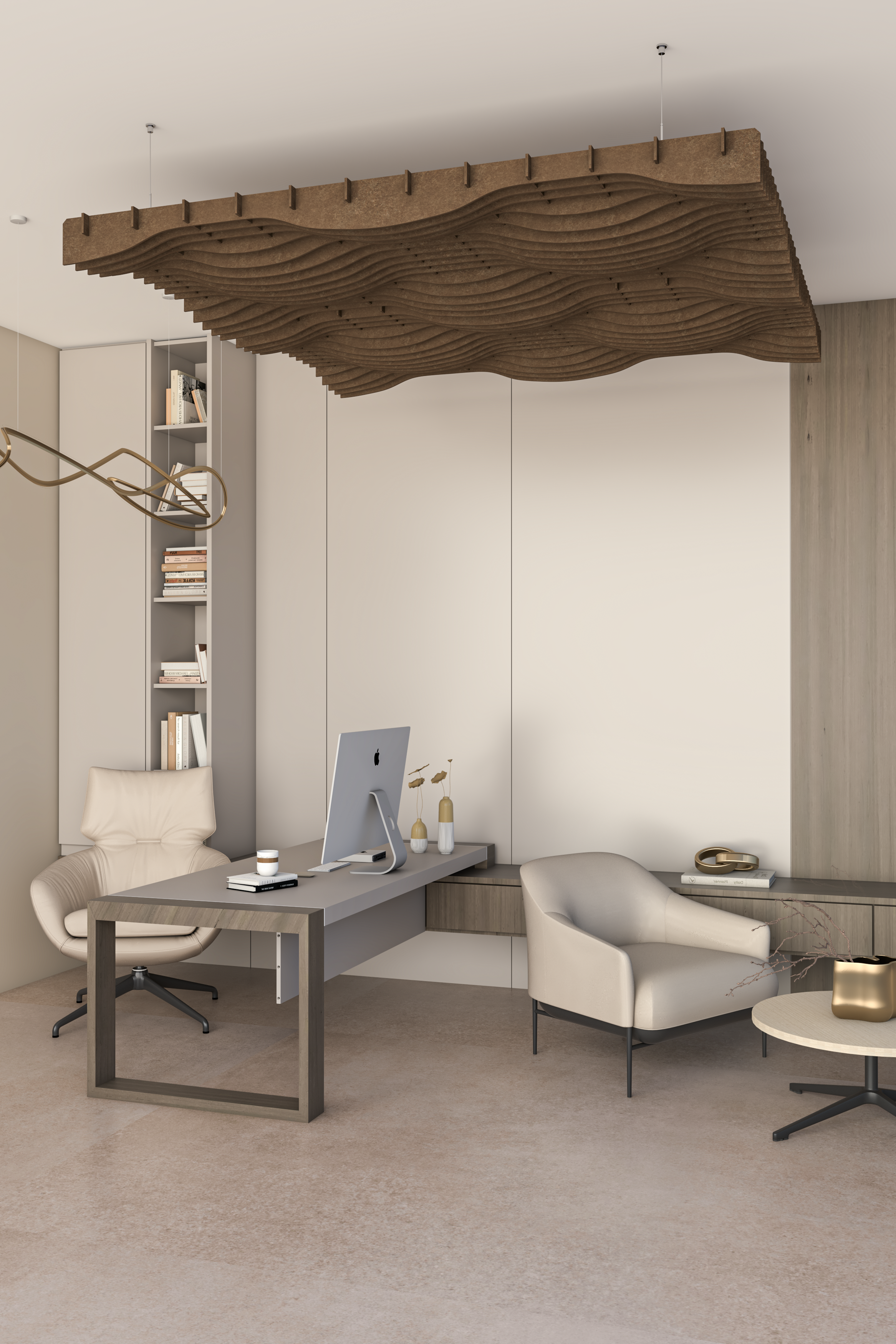

Suspended on cables, it creates a three-dimensional structure that allows
for flexible shaping of room acoustics.

EcoPET Quality, Safety and Certifications

Quality and safety are our highest priorities. That is why we use materials that meet high standards of quality, safety and environmental responsibility. EcoPET holds independent certifications and declarations confirming, among other things, its safety in use, recycled content and environmental performance. The material has also been tested for substance emissions and compliance with REACH and RoHS requirements.

EU 1907/2006

EN 717-1:2004

formaldehyde free

B-s2, d0

fire resistance

$OEKO-TEX® STANDARD 100 Product Class I$

Product Class I

GreenRate Level A

ISO 14025 / EN 15804

manufacturer coveredby GRS certification

Properties

Details

Product information

Grid allows for the creation of three-dimensional, multicolored, and multilayered spatial structures while ensuring high sound absorption properties. Grid modules can be placed on a standard T24 or T15 ceiling system structure but can also be freely suspended on adjustable cables.

Size

W x L x H

module suspended on adjustable cables:
1200 x 2400 x /depending on the pattern/ 150-205 mm
module mounted on a T24 or T15 ceiling system structure:
595 x 1195 x /depending on the pattern/ 150-205 mm

Weight

approx. 4 kg/m²

Material

EcoPET – compressed 75% recycled polyester fibers

odorless
non-toxic
non-dusting
available in many beautiful colors and different shapes
easy to clean
durable
non-pilling

EcoPET – production process

Sound absorption coefficient

α_{w, max} = 0,95 (zith E-200 mounting and an additional sound-absorbing layer above the module)

Designer

Architected Sound Team

EcoPET Colour Palette

Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.

Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.

The color chart can be ordered in the form of a sample box.

AP-01 Light Yellow

AP-02 Yellow

AP-02 Citrus

AP-03 Orange Tiger

AP-04 Pure White

AP-05 Light Camel

AP-06 Dark Camel

AP-07 Opera

AP-08 Red Coffee

AP-9 Light Grey

AP-10 Silver Grey

AP-11 Water Grey

AP-12 Moon Grey

AP-13 Greenery

AP-14 Green Flash

AP-15 Lotus

AP-16 Blackish Blue

AP-16 Pageant Blue

AP-17 Apple Red

AP-18 Tomato Pure

AP-19 Purple

AP-20 Pagoda

AP-21 Light Blue

AP-21 Navagio Bay

AP-22 Little Boy Blue

Próbka koloru panelu dekoracyjnego dźwiękochłonnego EcoPET w kolorze ciemnoniebieskim o symbolu AP-23 Deep Blue

AP-23 Beaucoup Blue

AP-24 Blue Green

AP-25 Ultimate Grey

AP-26-Sesame

AP-27 Pure Black

AP-28 Dark Grey

AP-29 Brown A

AP-29 Gray Green

AP-30 Brown B

AP-31 Acros

AP-32 Kelp Forest

AP-33 Regatta

AP-34 Blackish Green

AP-35 Lake Blue

AP-35 Lue Curacao

AP-36 Dark Silver

AP-37 Bonnie Blue

AP-38 Morandi

AP-39 Harbor

AP-40 Turquoise

AP-41 Falling Water

AP-42 Forever

AP-43 Iluminating

AP-44 Creamy White

AP-45 Space Gray

AP-46 Peach Pearl

AP-47 Navy Peony

AP-48 Purple

AP-48 Violet

AP-49 Senado

AP-50 Iceland Poppy

AP-51 Milk Cocoa

AP-52 Rust

AP-53 Abunadant

AP-54 River Side

AP-55 Sharp

AP-56 Mountains Red

AP-57 Storm

AP-58 Matcha

AP-59 Zara Camel

AP-60 Pure Red

AP-61 Black Green

AP-62 Ceylon

AP-63 Sky Blue

AP-64 Sagrazo

AP-65 Gem

AP-66 Agarwood

AP-67 Perfectly Pearl

AP-68 Grass Green

AP-69 Ultimate Red

AP-70 Fireplace

AP-71 Fairway

AP-72 Canary

AP-73 Cloudbrust

AP-74 Platinum

AP-75 Golden

AP-76 Montana Grape

AP-77 Mulberry

AP-78 Slate Gray

AP-79 Myst

AP-80 Neutral Grey

AP-81 Banana Yellow V2

AP-82 Cadet

AP-83 Balsam

AP-84 Orion

AP-85 Parthenon

AP-86 Highland

AP-87 Nerolac Terrace

AP-88 Formal Garder

AP-89 Douglas Fir

AP-90 Brittany

AP-91 Bronze

AP-92 Pinnacle

AP-93 Winter Bloom

AP-94 Corsair

AP-95 Claisonne
