Under-furniture acoustic system

EcoPET the Underlay is a specially designed under-furniture acoustic system that uses passive furniture surfaces to introduce materials with a very high efficiency of sound absorption. The Underlay will be perfect when mounted under a desk or chair, being hardly noticeable and not interfering with the design of the room. Its invaluable sound-absorbing properties ensure acoustic comfort, at work in particular.

more details

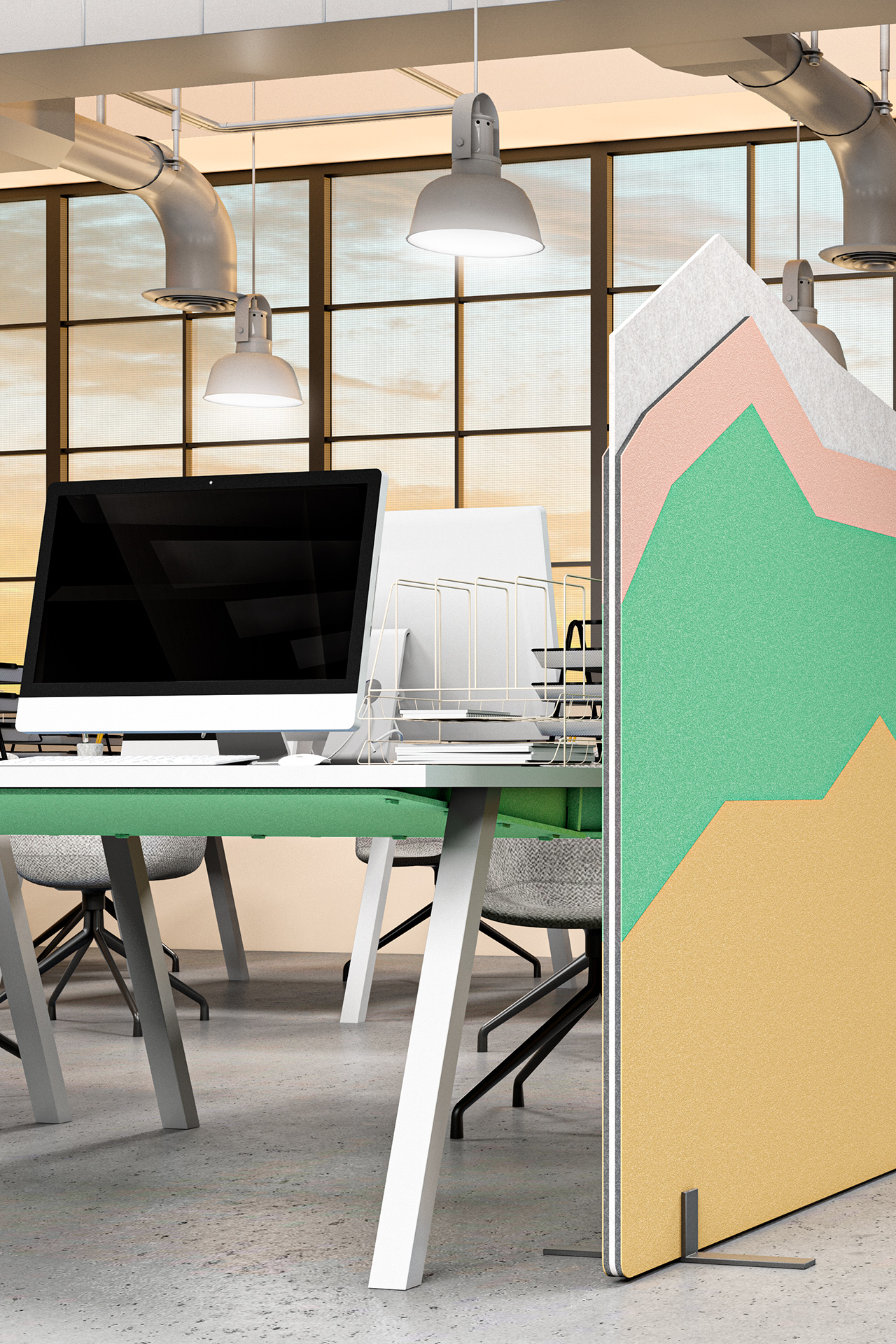

Use every inch of the space in your office!
Thanks to EcoPET the Underlay, you will increase the acoustic absorption of the interior with the least interference in the room design.

Quality and certificates

Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.

RoHS compliant
Reach compliant

EU 1907/2006

Certyfikat wolny od formaldehydu

EN 717-1:2004

formaldehyde free

Certyfikat klasy niepalności

B-s2, d0   C-s1, d0

fire resistance

Details

EcoPET the Underlay is a sub-furniture acoustic system that uses passive and unused surfaces of furniture to introduce materials with a very high efficiency of sound absorption. The shape of the Underlay elements has been designed in such a way that their use does not affect the ergonomics of using the furniture.

Size

according to an individual design
Size max. - 1200 × 2400 mm

Material

EcoPET, EcoFELT - pressed PET polyester fibers
Colour guide available on request.

Designer

IAMC Team

Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.

Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.

Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.

Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.

  • standard and open-plan offices
  • conference rooms
  • rooms in private homes and public buildings such as schools, universities, libraries and agencies

Depending on the design concept, different sizes, colours (single-color with EcoPET material, two-color or multi-color with EcoFELT material) and shapes are available

Technical drawing

Front view of under-furniture acoustic system EcoPET the Underlay
Side view of under-furniture acoustic system EcoPET the Underlay

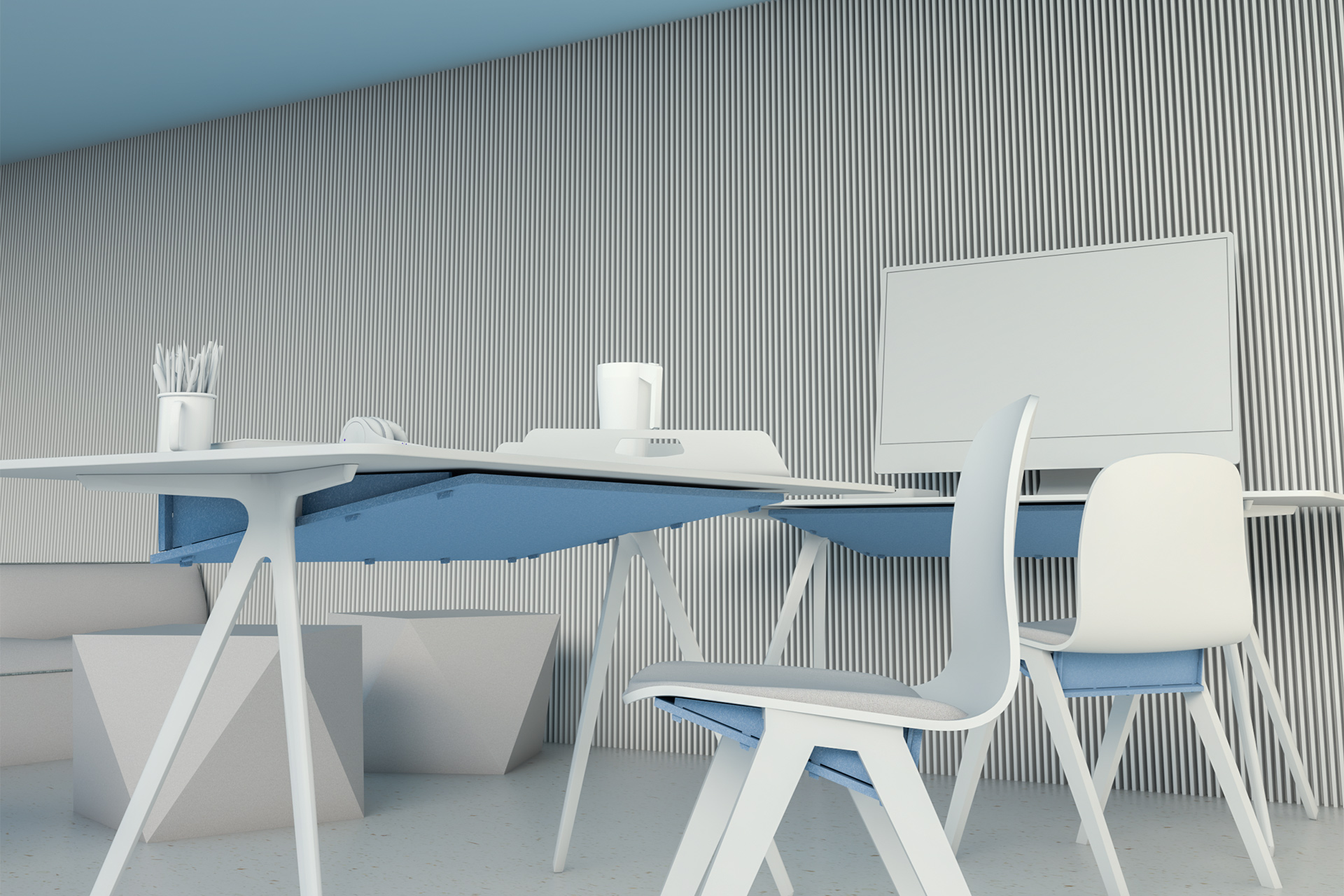

Under-furniture acoustic system EcoPET the Underlay under the desk

Fire safety

Possibility of making out of materials with fire resistance class B-s2, d0.

Sound absorption of Architected Sound EcoPET the Underlay

Sound absorption graph of sub-furniture acoustic system Architected Sound EcoPET the Underlay
frequency 1/1‑oct.
125 Hz0.20
250 Hz0.40
500 Hz0.80
1000 Hz1.00
2000 Hz1.00
4000 Hz0.90
  • EcoPET the Underlay *
  • * values obtained by measurements conducted according to PN‑EN ISO 354: 2005 and ISO 20189:2018
