Acoustic rafts

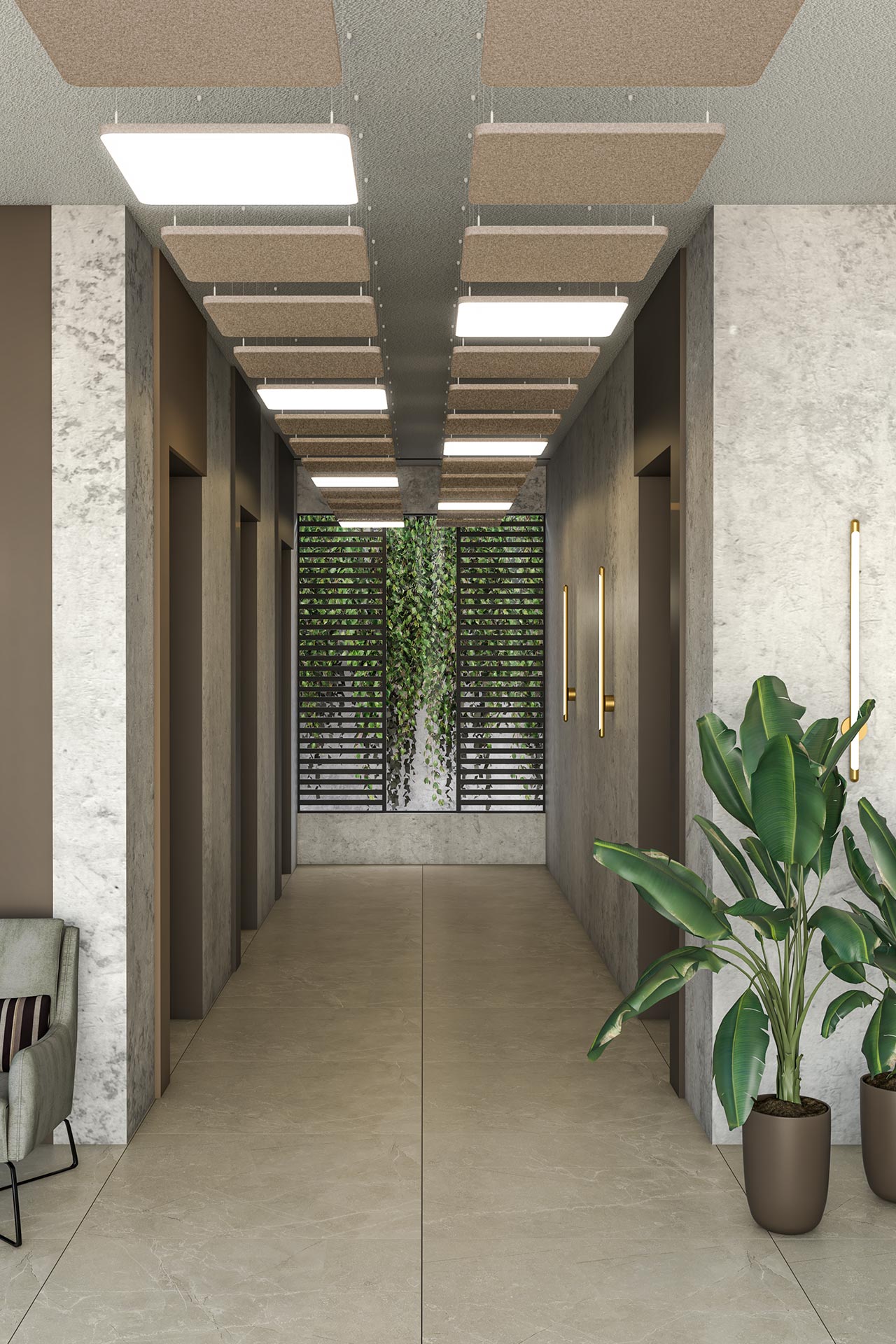

Cloud acoustic rafts are a lightweight and aesthetically refined solution that absorbs sound, reducing reverberation and noise. They can be installed either on the ceiling or on the wall, making them easy to adapt to the character of the space and the needs of the project. In the ceiling-mounted version, Cloud can be fixed directly to the ceiling or suspended on cables, offering great flexibility in arrangement.
Their low weight, elegant form, and the option to choose the EcoPET material colour from a wide range of shades make them an excellent fit for offices, conference rooms, schools, and other public and commercial interiors, improving acoustic comfort and speech intelligibility.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Cloud is a multilayer acoustic treatment made of EcoPET panels and Whisper® material, designed for both ceiling and wall installation. Its layered construction ensures effective sound absorption while maintaining a low overall weight, particularly in the frequency range important for reducing reverberation and improving speech intelligibility.
In the ceiling-mounted version, the system can be installed directly to the ceiling or suspended on adjustable cables, making it easier to adapt the solution to the architectural and technical requirements of the space. Its low weight also allows the product to be used in rooms with ceilings of limited load-bearing capacity.
Cloud is recommended for open-plan offices, conference and training rooms, call centres, educational spaces, public buildings, as well as commercial and multi-purpose interiors.
Cloud can also be customised with individual branding, such as a logo or a pattern matched to the character of the interior.
Dimension
- standard - 1200 × 1200 mm, 1200 × 600 mm
- according to an individual project, maximum dimensions - 1200 × 2400 mm
Weight
- 1200 × 1200 mm – approx. 5 kg
- 1200 × 600 mm – approx 2,5 kg
Material
- EcoPET – pressed polyester PET fibers
- Whisper® – acoustic panel made of polyethylene foam
EcoPET - compressed 75% recycled polyester fibers
- odorless
- non-toxic
- non-dusting
- available in many beautiful colors and different shapes
- easy to clean
- durable
- non-pilling
EcoPET - production process
Designer
Architected Sound Team
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
The color chart can be ordered in the form of a sample box.
- open-plan offices
- conference and training rooms
- call centres
- educational spaces (schools, universities)
- public buildings
- service and commercial spaces (e.g. restaurants, cafés, shops)
- recreation and relaxation areas
- multi-purpose rooms
The acoustic panel can be made to order in any size, shape, and colour, according to individual requirements (maximum panel size: 1200 × 2400 mm).
Technical drawing
standard versions: 1200 × 1200 mm, 1200 × 600 mm
Fire safety
Possibility of making the system out of materials with flammability class B‑s2, d0.
Architected Sound Cloud – equivalent absorption area
Equivalent absorption area – Aobj
| frequency 1/1 oct. |  |
|---|---|
| 125 Hz | 0,09 |
| 250 Hz | 0,39 |
| 500 Hz | 0,87 |
| 1000 Hz | 0,93 |
| 2000 Hz | 0,94 |
| 4000 Hz | 0,84 |
- Cloud
For more information about Cloud, please contact us via the contact form or email.
