Tilt Wall
Sound reflective panel

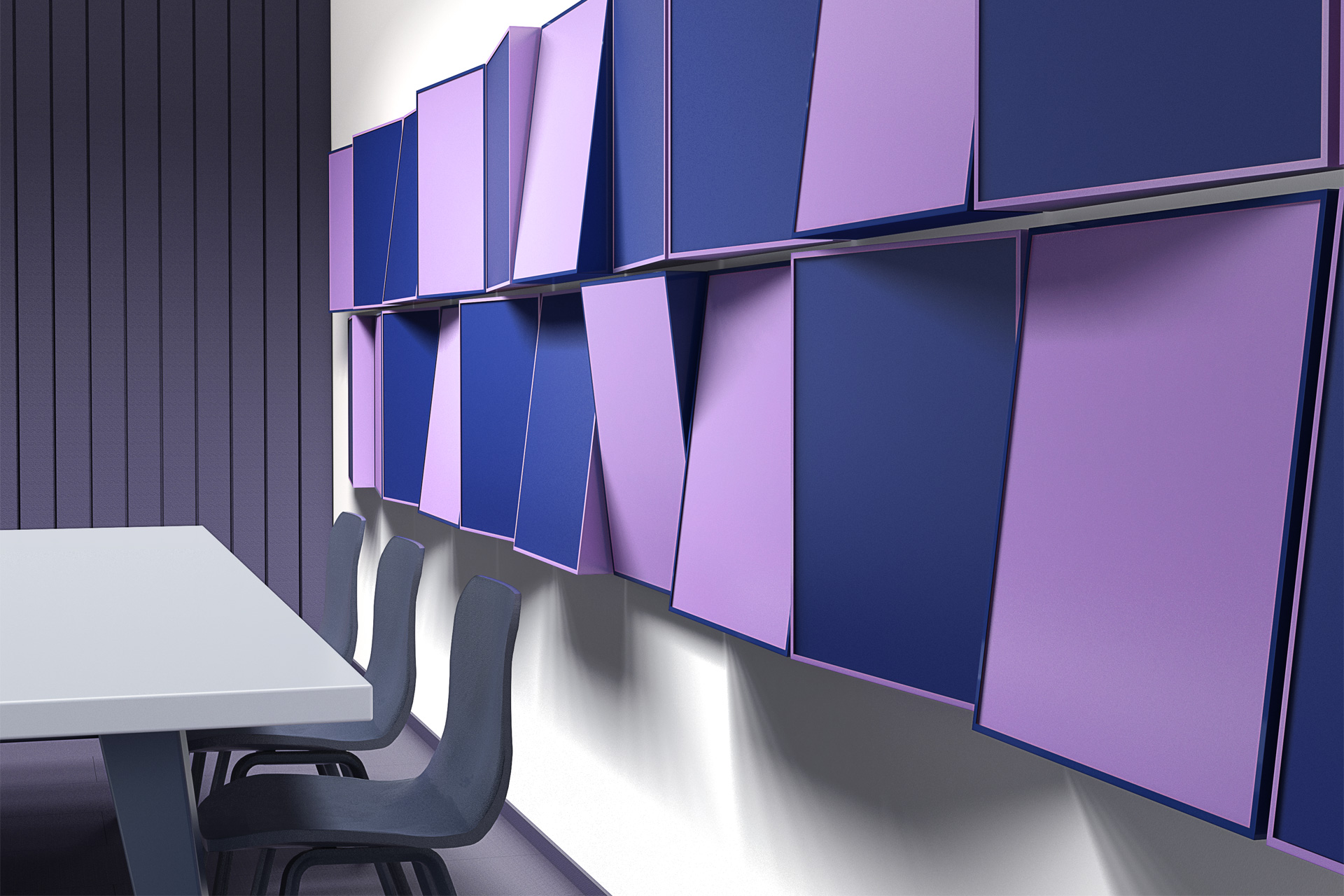

Tilt Wall is a wall acoustic system, created to correctly orient the sound wave reflections. Depending on the type of filling material and type of front plate, it’s possible to eliminate the flutter echo effect, achieve a significant improvement in speech intelligibility, and reduce reverberation in a wide, frequency range. Thanks to the slanted frame, the structure could be directed in any direction.
Designer
AS Team
Details
Tilt Wall is a multi-functional wall acoustic system that allows you to direct the sound wave reflections in the desired direction or tune the absorption in a wide range of frequencies. The Tilt Wall frame slants the front plate at an angle of 7° to the wall surface. Due to the uncomplicated installation and low weight, Tilt Wall system can also be used in existing, finished interiors, both on the walls and on the door. It is very useful in cases where components cannot be mounted symmetrically.
Illustration of directing sound waves using Tilt Wall frame
Size
596 × 596 × 100 mm
Weight
up to 8.3 kg
Material
- frame - powder – coated steel
- front plate - HPL, MDF plate, PET or mineral wool
- filling - polyurethane foam, mineral wool
Designer
Architected Sound Team
Illustration of Tilt Wall frame assembly
Tilt Wall acoustic system is available in any colour from the RAL K7 Classic palette.
RAL K7 Classic
- concert halls
- recording studios
- dedicated listening rooms
- conference rooms
- lecture halls
- classrooms
- waiting rooms
- offices
- public and consumer spaces
It is possible to make the Tilt Wall as a sound absorbing system using a front panel made of mineral wool, PET or a hard perforated panel. It is also possible to add a thin openwork plate with a pattern adjusted to the customer’s requirements.
Technical drawing
Fire safety
Possibility of making the diffusing only system out of materials with flammability class B-s1, d0.
Discover more
Tilt Lite
Sound reflective panel
Tilt Lite is an extremely light wall acoustic system, created in order to properly direct the reflections of the sound wave. The 7° inclined mounting bracket enables the front plate to be directed in any direction. Tilt Lite is a universal and individually selected element of acoustic treatment of the interior, which allows you to create interesting visual forms.
Designer
AS Team
Details
Tilt Lite is a wall-mounted, multifunctional acoustic system that allows you to direct the sound wave in the desired direction. The Tilt Lite mounting bracket tilts the front plate at an angle of 7 ° to the wall surface. Due to easy installation and low weight, the Tilt Lite system can also be used in existing, finished interiors, both on walls and on doors. It is also very useful in cases where classic acoustic systems cannot be installed symmetrically.
Illustration of directing sound waves using Tilt Lite panels
Dimensions
- square - 600 × 600 × 98 mm
- triangle - 600 × 520 × 93 mm
- semicircle - 600 × 300 × 79 mm
Weight
- square - up to 3,9 kg
- triangle - up to 2,2 kg
- semicircle - up to 3,3 kg
Material
powder coated steel
front plate - HPL, PET
Designer
Architected Sound Team
Illustration of Tilt Lite panel assembly
Colour guide of Tilt Lite is available on request.
- concert halls
- recording studios
- dedicated listening rooms
- conference rooms
- lecture rooms
- classrooms
- waiting rooms
- offices
- consumer and public spaces
It is possible to make the Tilt Lite as a sound absorbing system using EcoPET as a front panel.
Technical drawing
Fire safety
Possibility of making the diffusing only system out of materials with flammability class B-s1, d0.
Discover more
Panel dźwiękochłonny
Poznajcie nasz przebojowy produkt – płytki akustyczne EcoPET. Dzięki ich minimalistycznej formie, niewielkiej grubości oraz możliwości dowolnego mieszania kolorów i kształtów stworzycie swoją własną, niepowtarzalną ścianę o super MOCY! Siła działania naszych płytek EcoPET wynika ze specyfiki materiału, z którego są wykonane oraz bardzo wysokiej skuteczności tłumienia dźwięków i pochłaniania wszelkich hałasów.
Slotbar
Sound absorbing system
Slotbar is a modular sound-absorbing system developed by Architected Sound. Uniquely arranged natural wooden bars absorb low tone resonance. Its properties result from specifically designed slot system which maintains optimum acoustic conditions and provides innovative shape. The whole structure guarantees absorption in low frequency range. SlotBar can be used as standalone system or in addition to OptiDi.
Simplicity is the key to brilliance!
Designer
AS Team
Details
SlotBar properties allow the absorption of sound in the low frequency range with relatively small thickness of the structure, which is particularly desirable in small sized studio rooms. It is possible to precisely design the range of sound absorption in the low frequencies due to specially developed slot system with a variable gap width, supported by the use of acoustic nonwovens and an invisible layer of material with appropriately selected acoustic properties. Optional installation of teletechnical, electrical equipment and executive modules inside the system.
Size
150 × 1200 × 12 mm
Thickness
Substructure with absorbing material (e.g. mineral wool) is 50-100 mm thick (depending on the absorption needed).
Minimum thickness of a single element: 12 mm
Weight
10 kg/m2 (substructure not included)
Material
MDF
Designer
Architected Sound Team
Sound absorption coefficient
αw, max = 0.60
The SlotBar sound-absorbing system is available in any colour from the RAL K7 Classic palette or natural veneer.
RAL K7 Classic
Veneer
- concert halls
- recording studios
- home listening rooms
- offices
- conference room
- classrooms in musical schools
- consumer spaces
- waiting rooms
Large diversity of sizes in design and installation solutions available, which enables designing and installing the module of external sizes required for current localization.
Technical drawing
Fire safety
Possibility of making the system out of materials with flammability class at least D-s1.
Sound absorption coefficients of Architected Sound SlotBar
Practical sound absorption coefficient αp
| frequency 1/1-oct. |  |
 |
 |
 |
|---|---|---|---|---|
| 125 Hz | 0.05 | 0.15 | 0.05 | 0.15 |
| 250 Hz | 0.15 | 0.55 | 0.20 | 0.55 |
| 500 Hz | 0.50 | 0.85 | 0.55 | 0.90 |
| 1000 Hz | 0.75 | 0.90 | 0.85 | 0.95 |
| 2000 Hz | 0.90 | 0.90 | 0.95 | 0.95 |
| 4000 Hz | 0.90 | 0.85 | 0.95 | 0.95 |
- percentage share of the slot 1%, mineral wool 100 mm, o.d.s. 112 mm *
- percentage share of the slot 4%, mineral wool 50 mm, o.d.s. 62 mm *
- percentage share of the slot 50%, mineral wool of high density 50 mm, o.d.s. 62 mm *
- percentage share of the slot 50%, mineral wool of medium density 50 mm, o.d.s. 62 mm *
* results obtained from analytical calculations
