Board
Sound absorbing panel resembling

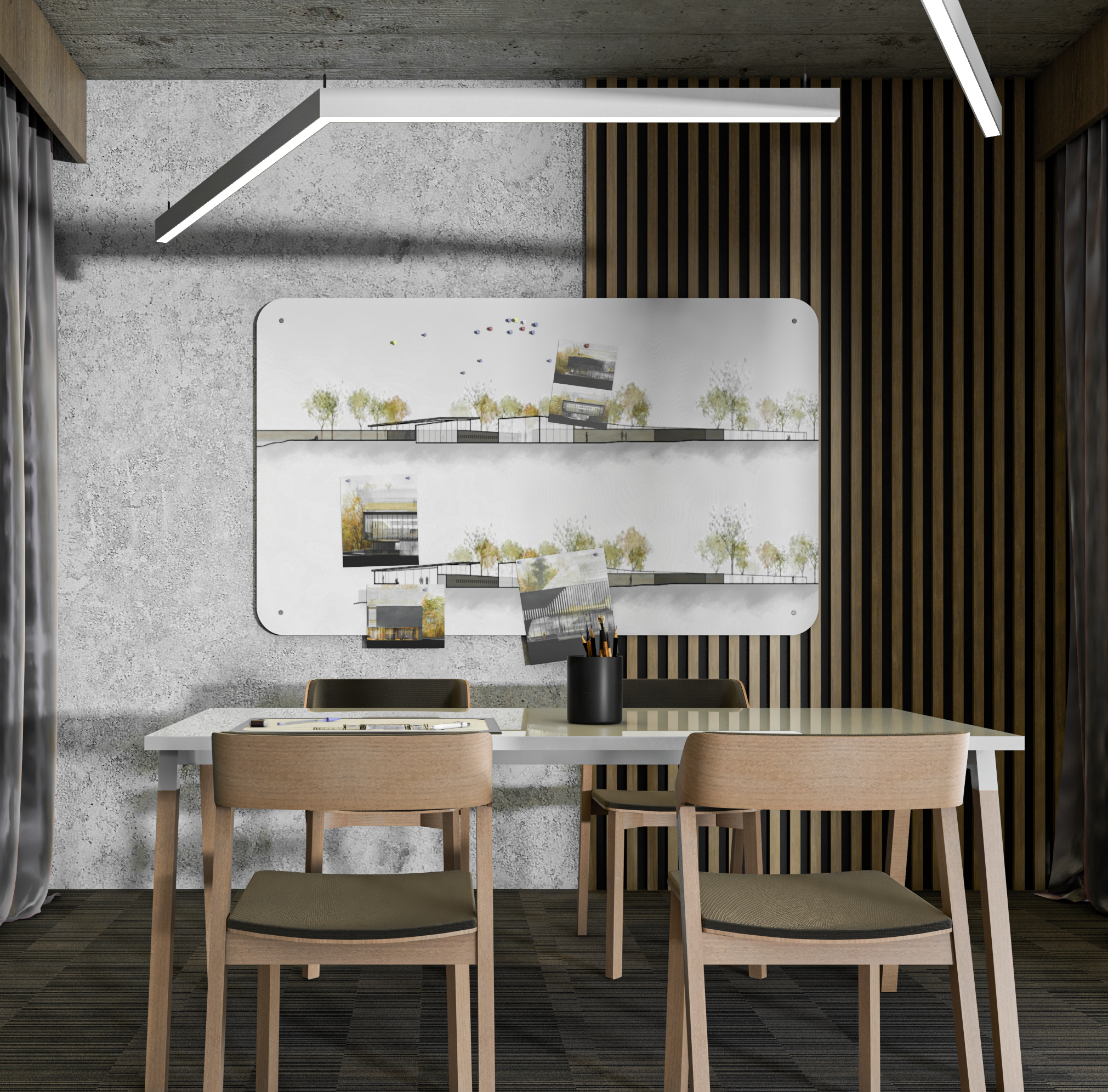

Board is a sound absorbing panel resembling a notice board and acting as one. It can get any shape, so it fits in kindergartens, classrooms, boardrooms or any kind of office. Due to its two-layer construction, it can have a single coloured finish, or a double coloured edge. Leave a note for your colleague and anjoy the silent environment.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Detailed information, which we are working on, will soon be available here.
For more information about Board, please contact us via the contact form or email.
Discover more
Cloud
Acoustic rafts
Cloud acoustic rafts are a lightweight and aesthetically refined solution that absorbs sound, reducing reverberation and noise. They can be installed either on the ceiling or on the wall, making them easy to adapt to the character of the space and the needs of the project. In the ceiling-mounted version, Cloud can be fixed directly to the ceiling or suspended on cables, offering great flexibility in arrangement.
Their low weight, elegant form, and the option to choose the EcoPET material colour from a wide range of shades make them an excellent fit for offices, conference rooms, schools, and other public and commercial interiors, improving acoustic comfort and speech intelligibility.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Cloud is a multilayer acoustic treatment made of EcoPET panels and Whisper® material, designed for both ceiling and wall installation. Its layered construction ensures effective sound absorption while maintaining a low overall weight, particularly in the frequency range important for reducing reverberation and improving speech intelligibility.
In the ceiling-mounted version, the system can be installed directly to the ceiling or suspended on adjustable cables, making it easier to adapt the solution to the architectural and technical requirements of the space. Its low weight also allows the product to be used in rooms with ceilings of limited load-bearing capacity.
Cloud is recommended for open-plan offices, conference and training rooms, call centres, educational spaces, public buildings, as well as commercial and multi-purpose interiors.
Cloud can also be customised with individual branding, such as a logo or a pattern matched to the character of the interior.
Dimension
- standard - 1200 × 1200 mm, 1200 × 600 mm
- according to an individual project, maximum dimensions - 1200 × 2400 mm
Weight
- 1200 × 1200 mm – approx. 5 kg
- 1200 × 600 mm – approx 2,5 kg
Material
- EcoPET – pressed polyester PET fibers
- Whisper® – acoustic panel made of polyethylene foam
EcoPET - compressed 75% recycled polyester fibers
- odorless
- non-toxic
- non-dusting
- available in many beautiful colors and different shapes
- easy to clean
- durable
- non-pilling
EcoPET - production process
Designer
Architected Sound Team
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
The color chart can be ordered in the form of a sample box.
- open-plan offices
- conference and training rooms
- call centres
- educational spaces (schools, universities)
- public buildings
- service and commercial spaces (e.g. restaurants, cafés, shops)
- recreation and relaxation areas
- multi-purpose rooms
The acoustic panel can be made to order in any size, shape, and colour, according to individual requirements (maximum panel size: 1200 × 2400 mm).
Technical drawing
standard versions: 1200 × 1200 mm, 1200 × 600 mm
Fire safety
Possibility of making the system out of materials with flammability class B‑s2, d0.
Acoustic properties
- sound absorption class according to PN-EN ISO 11654: B
- weighted sound absorption coefficient according to PN-EN ISO 11654: αw = 0,80
- Sound Absorption Average according to ASTM C423, 2017: SAA = 0,86
- Noise Reduction Coefficient according to ASTM C423, 2017: NRC = 0,90
Architected Sound Cloud – equivalent absorption area
Equivalent absorption area – Aobj
| frequency 1/1 oct. |  |
|---|---|
| 125 Hz | 0,09 |
| 250 Hz | 0,39 |
| 500 Hz | 0,87 |
| 1000 Hz | 0,93 |
| 2000 Hz | 0,94 |
| 4000 Hz | 0,84 |
- Cloud
For more information about Cloud, please contact us via the contact form or email.
Discover more
SlotBar Alu
Acoustic wall slats
SlotBar is a modular sound-absorbing system. Its properties result from specifically designed slot system which maintains optimum acoustic conditions and provides innovative shape. The whole structure made from aluminium guarantees sound absorption in the low frequency range. SlotBar can be used as a standalone system or in addition to our OptiDi diffuser.
Designer
AS Team
Details
SlotBar Alu
SlotBar Alu + Optidi
SlotBar Alu is possible to finish in any colour from RAL K7 Classic palette or wood–like varnish.
RAL K7 Classic
The most popular colours
Wood-like varnish
Non-binding color sample.
Production-related and/or application-related deviations are possible.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
Discover more
Contour
Acoustic slat panel
Contour acoustic slats help create an interior that is not only beautiful and modern, but also quiet, soothing and relaxing. Thanks to them, we can easily silence the room in which we want an atmosphere of peace and harmony. They reduce the echo effect that we encounter in many rooms.
The panels provide a harmonious balance between acoustic performance and architectural elegance, making them a perfect addition to interior spaces such as offices, educational facilities, commercial spaces and residential interiors.
Contour acoustic slats fit perfectly into various interior styles. They will certainly appeal to both lovers of minimalism and traditional solutions. Their simple form looks extremely impressive and does not require additional decorations.
They are available in a wide range of colors and patterns, which allows you to seamlessly combine acoustic functionality with the vision of any space adaptation project.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Detailed information, which we are working on, will soon be available here.
For more information about Contour, please contact us via the contact form or email.
Discover more
Abstract
Acoustic panel
Abstract sound-absorbing artworks were designed to absorb mid and high frequencies. Each piece helps reduce unwanted reverberation, which increases the perceived level of noise.
We have hidden the sound-absorbing power in the Abstract images, which can transform any space into a cozy and quiet interior.
As designers and aesthetes,we find pleasure in shaping an ordinary material into functional but sublime acoustic products.
Let’s do this!
Feel like a true artist
and design the colors of your own artwork!
Let your imagination set no limits.
Explore our wide EcoPET color palette.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Abstract is a multi-layer acoustic system in the form of a three-dimensional artwork. The use of EcoPET material layers of different thicknesses increases sound absorption performance while emphasizing the three-dimensional character of the composition.
Dimensions
~600 × ~800 mm
There is a possibility of making a custom image in different size than standard.
Maximum size: 1200 × 2400 mm
Thickness
maximum: ~36 mm
Material
EcoPET – compressed 75% recycled polyester fibers
- odorless
- non-toxic
- non-dusting
- available in many beautiful colors and different shapes
- easy to clean
- durable
- non-pilling
EcoPET – production process
Designer
Architected Sound
Shapes library
The Abstract is an acoustic image. For increased sound absorption, better visual and three-dimensional effect, shapes are cut from materials of different thicknesses.
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
The color chart can be ordered in the form of a sample box.
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
- every room in which noise is an irritating and distracting factor
- places for remote work, classes, phone and video conferences, home office
- rooms for listening to music, playing computer games, watching movies
- conference rooms, lecture halls and classrooms
- rooms for recording audio, video and live transmission, vlogs, podcasts, webinars
- waiting rooms, public and consumer spaces, open-space interiors
- all rooms requiring improvement of interior acoustics
There is a possibility of making a custom image in different size than standard (max. 1200 × 2400 mm).
Fire safety
Made of materials with flammability class at least B-s2, d0.
Discover more
Baffle
Sound absorbing ceiling panel
Detailed information, which we are working on,
will soon be available here. For more information about the Baffle,
please contact us via the contact form or email.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Discover more
EcoPET on Wheels
Mobile acoustic panel
EcoPET on Wheels is a mobile acoustic system that absorbs sound in the full frequency range with the optional acoustic insulation function. Perfect for use in multifunctional spaces or with free furniture arrangements. It will be a perfect fit in pop-up spaces and in interiors where it is not possible to permanently interfere with the existing decor (i.e. historic spaces).
EcoPET on Wheels system may be produced with graphic elements on front and back or with a translucent element to separate space in open space offices or recording studios, while keeping the sunlight or maintaining eye contact. This system is a highly universal and ergonomic solution ensuring acoustic comfort, thanks to the possibility of personalization and freedom of setting and use.
Mobile acoustic partition with creative
whiteboard function
EcoPET on Wheels can be equipped with a dry-erase magnetic board, adding extra functionality to the product. The combination of high acoustic performance with a practical surface for notes and presentations makes it an ideal solution for modern offices, meeting rooms, creative zones, and coworking spaces.
Mobile partition with a dry-erase board
- improves acoustic comfort by reducing reverberation and noise,
- enables quick creation of a private workspace within an open office environment,
- allows for easy note-taking, planning, and sketching,
- supports presentations and discussions in a focused atmosphere,
- can be easily moved to any location thanks to its wheels,
- serves as a functional tool for teamwork and creative planning.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
EcoPET on Wheels is a mobile acoustic partition made of EcoPET – a high-performance, sound-absorbing composite derived from recycled PET, characterized by excellent sound absorption properties across a wide frequency range.
The product is designed for flexible arrangement of office spaces, open-plan areas, meeting zones, and coworking environments, where reducing reverberation and creating separated work zones is essential.
Its structure, mounted on a stable wheeled base, allows for easy relocation of the partition to suit the users’ current needs.
Functional and technical features:
– high sound absorption efficiency provided by EcoPET panels,
– choice of finish from a palette of over 100 available EcoPET colors,
– optional integration of a magnetic dry-erase board for notes and presentations,
– lightweight, mobile construction enabling effortless repositioning,
– capability to quickly create private work zones and reduce noise propagation.
EcoPET on Wheels combines acoustics, aesthetics, and functionality, making it an ideal solution for modern, dynamically changing spaces.
Standard sizes
1100 × 300 × 1900 mm
Weight
approx. 20 kg
Standard material
panel:
PET – pressed polyester fibers made from 75% recycled material
base:
plywood, wheels
Designer
Architected Sound Team
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
Possibility of manufacturing in a custom size and any color (selected from the EcoPET color palette) according to individual specifications.
Technical drawing
For more information about EcoPET on Wheels, please contact us via the contact form or email.
Discover more
StandAlone
Acoustic screen
Standalone panel is a free-standing acoustic system that absorbs sound in the full frequency range. Perfect for use in spaces with various functions or a free arrangement of furniture. It will be a great fit as part of pop-up spaces or in interiors where it is not possible to interfere with the existing decor (i.e. historic spaces, etc.).
The Standalone panels may be produced with graphic elements on front and back or with a translucent element to separate space in open space offices or recording studios, while keeping the sunlight or maintaining eye contact.
Set, adjust,
and enjoy the silence!
Effective noise reduction – absorbs sound across the full frequency range.
Mobility and flexibility – ideal for offices, open spaces, recording studios, and multifunctional areas.
No interior modifications – a freestanding structure, perfect for historic and rented spaces.
Customization options – a wide range of colors, branding, and transparent elements.
Safety and durability – made from lightweight, impact-resistant EcoPET.
Easy installation – no need for wall or ceiling mounting.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Technical drawing
Fire safety
Possibility of making the system out of materials with flammability class B-s2, d0.
For more information about the StandAlone, please contact us via the contact form or email.
Discover more
Grid
Raster acoustic ceiling
Grid was created to revitalize flat acoustic modular and raster suspended ceilings, also using the standard T24 and T15 construction. The spatial structure of the Grid elements, made of a material with a high sound absorption, translates into a much higher acoustic absorption capacity per square meter of the ceiling compared to commonly used solutions.
The system enables the creation of three-dimensional, multi-coloured and multi-layer spatial structures while ensuring excellent sound absorption properties.
The Grid modules can also be freely suspended on adjustable slings, without the use of T24 or T15 grids.
Mounted on a ceiling structure, it provides an aesthetic finish and effective sound absorption,
perfectly complementing T24 and T15 systems.
Suspended on cables, it creates a three-dimensional structure that allows
for flexible shaping of room acoustics.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Grid allows for the creation of three-dimensional, multicolored, and multilayered spatial structures while ensuring high sound absorption properties. Grid modules can be placed on a standard T24 or T15 ceiling system structure but can also be freely suspended on adjustable cables.
Size
W x L x H
- module suspended on adjustable cables:
1200 x 2400 x /depending on the pattern/ 150-205 mm - module mounted on a T24 or T15 ceiling system structure:
595 x 1195 x /depending on the pattern/ 150-205 mm
Weight
approx. 4 kg/m²
Material
EcoPET – compressed 75% recycled polyester fibers
- odorless
- non-toxic
- non-dusting
- available in many beautiful colors and different shapes
- easy to clean
- durable
- non-pilling
EcoPET – production process
Sound absorption coefficient
αw, max = 0,95 (zith E-200 mounting and an additional sound-absorbing layer above the module)
Designer
Architected Sound Team
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
The color chart can be ordered in the form of a sample box.
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
It is possible to combine with EcoFelt acoustic felt.
Various sizes and shapes available, depending on the design concept.
For more information about the Grid, please contact us via the contact form or email.
Discover more
Screen
Acoustic partition
Screen are freestanding acoustic panels that effectively reduce reverberation and noise, improving everyday acoustic comfort. Lightweight, stylish and modular – they make it easy to define zones for work, relaxation or meetings without altering the structure of the space.
With a wide range of colours and modern design, they serve not only as functional, but also decorative elements of interior arrangements. Perfect for offices, open-plan spaces, meeting rooms, customer service areas and any interior that requires improved acoustics.
You decide what your space looks like. Noise? Not welcome here anymore.
Separate your own space
with the Screen standing acoustic elements!
Create your own corner
Get the silence you need, exactly where it matters.
Let Screen take care
For offices, schools, and shared spaces.
In open-plan areas, private rooms, and customer service points.Screen brings silence wherever focus matters.
Quality and certificates of EcoPET material
Quality and safety are our top priority.
Therefore, we use materials that meet the highest standards and comply with the requirements of the building law.
Some of our products additionally meet the requirements of the RoHS directive and the REACH regulation.
EU 1907/2006
EN 717-1:2004
formaldehyde free
B-s2, d0
fire resistance
Properties
Details
Screen is a freestanding sound-absorbing acoustic partition. It serves not only as a sound barrier but also helps eliminate common acoustic issues in rooms, such as excessive reverberation or flutter echo. By using EcoPET the Screen, you can divide a larger space and create a dedicated work area with significantly improved acoustic comfort.
Size
600 × 1800 mm
or according to an individual design.
Size max. – 1200 × 2440 mm
Thickness
30 mm
Area weight
2000 - 5000 g/sqm
Material
EcoPET, EcoFELT - pressed PET polyester fibers
Colour guide available on request.
Designer
IAMC Team
Sound absorption coefficient
αw = 0.25
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
Please note, that the colors shown are for illustrative purposes only.
Batch to batch variations in shade may occur within commercial tolerances.
Before placing an order, please contact us at info@architected-sound.com in order to verify the colours and their availability.
- offices and open-plan workspaces
- customer service areas (e.g. in banks, public institutions)
- educational facilities (schools, universities, community centres)
- libraries
- private offices and individual work zones
- beauty and hair salons
- public and commercial spaces
- relaxation and lounge areas
Technical drawing
Fire safety
Possibility of making out of materials with fire resistance class B-s2, d0.
Sound absorption coefficients of Architected Sound Screen
| frequency 1/1 oct. | |
|---|---|
| 125 Hz | 0.05 |
| 250 Hz | 0.05 |
| 500 Hz | 0.15 |
| 1000 Hz | 0.30 |
| 2000 Hz | 0.40 |
| 4000 Hz | 0.50 |
- Screen *
* values obtained by numerical simulation for an element freely
suspended in space
Discover more
